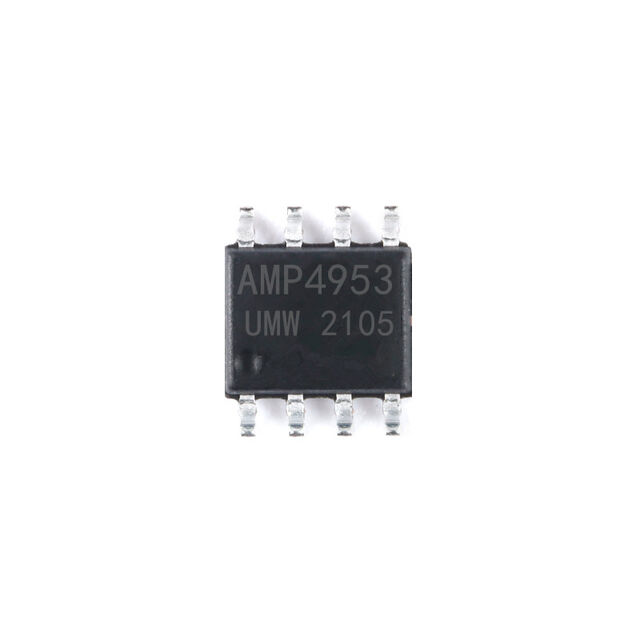

APM4953

Active

UMW

MOSFET 30V 5.3A 8SOP

Search across all available documentation for this part.

Active

UMW

MOSFET 30V 5.3A 8SOP

Technical Specifications

Parameters and characteristics for this part

Specification	APM4953

Current - Continuous Drain (Id) @ 25°C	5.3 A
Drain to Source Voltage (Vdss)	30 V
Gate Charge (Qg) (Max) @ Vgs	12 nC
Input Capacitance (Ciss) (Max) @ Vds	504 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	8-SOIC
Package / Case [x]	0.154 in
Package / Case [y]	3.9 mm
Power - Max [Max]	2 W
Rds On (Max) @ Id, Vgs	41 mOhm
Supplier Device Package	8-SOP
Vgs(th) (Max) @ Id	2.5 V

Part	Package / Case	Package / Case [y]	Package / Case [x]	Rds On (Max) @ Id, Vgs	Power - Max [Max]	Supplier Device Package	Vgs(th) (Max) @ Id	Drain to Source Voltage (Vdss)	Input Capacitance (Ciss) (Max) @ Vds	Gate Charge (Qg) (Max) @ Vgs	Mounting Type	Current - Continuous Drain (Id) @ 25°C	Operating Temperature [Min]	Operating Temperature [Max]
UMW APM4953	8-SOIC	3.9 mm	0.154 in	41 mOhm	2 W	8-SOP	2.5 V	30 V	504 pF	12 nC	Surface Mount	5.3 A	-55 °C	150 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Mosfet Array 30V 5.3A (Ta) 2W (Ta) Surface Mount 8-SOP
