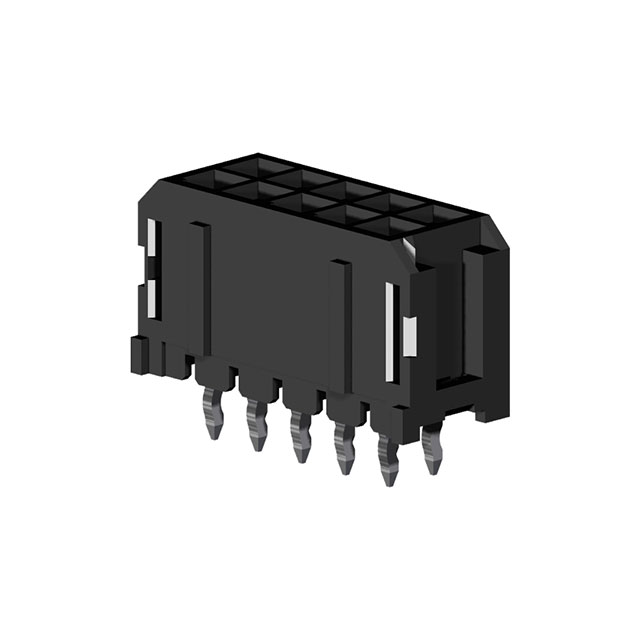

CP3516P1V00-NH
ActiveCvilux USA
16 POS 3.00MM(.118) DUAL ROWS VE
Deep-Dive with AI
Search across all available documentation for this part.
CP3516P1V00-NH
ActiveCvilux USA
16 POS 3.00MM(.118) DUAL ROWS VE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CP3516P1V00-NH |
|---|---|
| Connector Type | Plug |
| Contact Finish - Post | Tin |
| Contact Length - Post | 3.2 mm |
| Contact Length - Post [x] | 0.126 in |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 7 A |
| Fastening Type | Locking Ramp |
| Features | Board Guide |
| Insulation Color | Black |
| Insulation Height [z] | 9.91 mm |
| Insulation Height [z] | 0.39 in |
| Insulation Material | Plastic, Halogen Free |
| Mounting Type | Through Hole |
| Number of Positions | 16 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.118 in |
| Pitch - Mating | 3 mm |
| Row Spacing - Mating | 3 mm |
| Row Spacing - Mating | 0.118 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Kinked Pin, Solder |
| Voltage Rating | 600 VAC |
