Technical Specifications
Parameters and characteristics for this part
| Specification | UM3308 |
|---|---|
| Channel Type | Bidirectional |
| Channels per Circuit | 8 |
| Data Rate | 100 Mbps |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Non-Inverted |

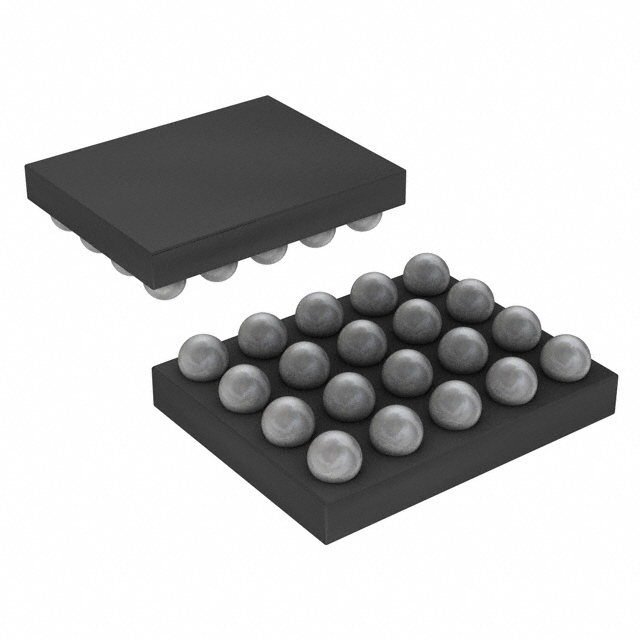

| Package / Case | 20-WFBGA, CSPBGA |
| Supplier Device Package | 20-CSP (2.35x1.85) |
| Translator Type | Voltage Level |
| Voltage - VCCA [Max] | 3.6 V |
| Voltage - VCCA [Min] | 1.65 V |
| Voltage - VCCB [Max] | 5.5 V |
| Voltage - VCCB [Min] | 2.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2 | $ 0.86 | |
| 10 | $ 0.73 | |||
| 100 | $ 0.56 | |||
| 500 | $ 0.35 | |||
Description
General part information
UM3308 Series
Voltage Level Translator Bidirectional 1 Circuit 8 Channel 100Mbps 20-CSP (2.35x1.85)
