341-031-500-108
ActiveEDAC Inc.

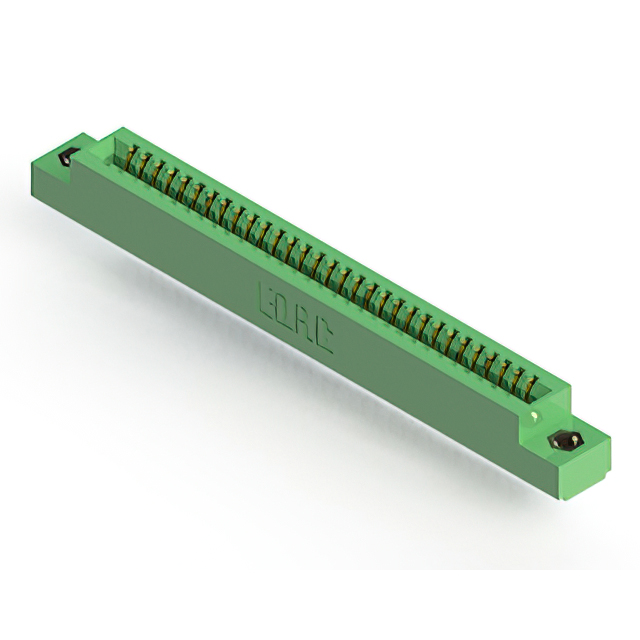

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 31 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
341-031-500-108
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 31 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 341-031-500-108 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 31 |
| Number of Positions/Bay/Row [custom] | 31 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder Eyelet(s) |
| Termination Rows | 1 |
341-031 Series
| Part | Material - Insulation | Contact Material | Gender | Number of Positions/Bay/Row [custom] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Type | Color | Flange Feature | Number of Positions | Pitch [x] | Pitch [x] | Card Type | Mounting Type | Read Out | Termination Rows | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Termination | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Diallyl Phthalate (DAP) | Copper Alloy | Female | 31 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | Green | 4-40 Flush Mount Threaded Insert Top Opening | 31 | 2.54 mm | 0.1 in | Non Specified - Single Edge | Through Hole | Single | 1 | Gold | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 1 | Solder Eyelet(s) | ||
EDAC Inc. | Diallyl Phthalate (DAP) | Copper Alloy | Female | 31 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | Green | Flush Mount Top Opening Unthreaded | 31 | 2.54 mm | 0.1 in | Non Specified - Single Edge | Through Hole | Single | 1 | Gold | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 1 | Solder Eyelet(s) | 3.25 mm | 0.128 " |
EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Female | 31 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | Green | Flush Mount Top Opening Unthreaded | 31 | 2.54 mm | 0.1 in | Non Specified - Single Edge | Through Hole | Single | 1 | Gold | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 1 | Solder | 3.25 mm | 0.128 " |
EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Female | 31 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | Green | Floating Bobbin Flush Mount | 31 | 2.54 mm | 0.1 in | Non Specified - Single Edge | Through Hole | Single | 1 | Gold | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 1 | Solder | 2.95 mm | 0.116 in |
EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Female | 31 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | Green | Flush Mount Top Opening Unthreaded | 31 | 2.54 mm | 0.1 in | Non Specified - Single Edge | Through Hole | Single | 1 | Gold | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 1 | Solder | 3.25 mm | 0.128 " |
EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Female | 31 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | Green | 4-40 Flush Mount Threaded Insert Top Opening | 31 | 2.54 mm | 0.1 in | Non Specified - Single Edge | Through Hole | Single | 1 | Gold | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 1 | Solder | ||
EDAC Inc. | Diallyl Phthalate (DAP) | Copper Alloy | Female | 31 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | Green | 31 | 2.54 mm | 0.1 in | Non Specified - Single Edge | Through Hole | Single | 1 | Gold | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 1 | Solder Eyelet(s) | |||
EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Female | 31 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | Green | Flush Mount Top Opening Unthreaded | 31 | 2.54 mm | 0.1 in | Non Specified - Single Edge | Through Hole | Single | 1 | Gold | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 1 | Solder | 3.96 mm | 0.156 in |
EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Female | 31 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | Green | 31 | 2.54 mm | 0.1 in | Non Specified - Single Edge | Through Hole | Single | 1 | Gold | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 1 | Solder | |||
EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Female | 31 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | Green | Floating Bobbin Flush Mount | 31 | 2.54 mm | 0.1 in | Non Specified - Single Edge | Through Hole | Single | 1 | Gold | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 1 | Solder | 2.95 mm | 0.116 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
341-031 Series
31 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
