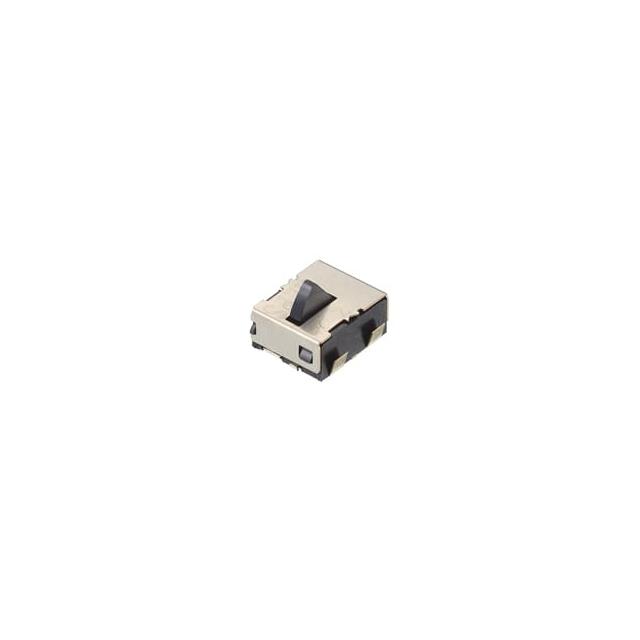

SPVM110100
ActiveAlps Alpine
DETECT SWITCH, SPST, 0.001A, 5V, SMD ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsTechnical Data Sheet EN
SPVM110100
ActiveAlps Alpine
DETECT SWITCH, SPST, 0.001A, 5V, SMD ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsTechnical Data Sheet EN
Technical Specifications
Parameters and characteristics for this part
| Specification | SPVM110100 |
|---|---|
| Actuator Type | Angled Toggle (Detector) |
| Circuit | SPST-NO |
| Current Rating (Amps) | 1 mA |
| Electrical Life | 50000 Cycles |
| Mounting Type | Surface Mount |
| Operating Force | 41 gf |
| Operating Position [x] | 2.2 mm |
| Operating Position [x] | 0.087 in |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Overtravel | 0.026 in |
| Overtravel | 0.7 mm |
| Pretravel | 0.013 in |
| Pretravel | 0.33 mm |
| Switch Function | Off-On |
| Termination Style | J Lead |
| Voltage Rating - DC | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.14 | |
| 10 | $ 1.10 | |||
| 25 | $ 1.03 | |||
| 100 | $ 0.89 | |||
| 250 | $ 0.81 | |||
| 500 | $ 0.75 | |||
| 1000 | $ 0.70 | |||
| Digi-Reel® | 1 | $ 1.14 | ||
| 10 | $ 1.10 | |||
| 25 | $ 1.03 | |||
| 100 | $ 0.89 | |||
| 250 | $ 0.81 | |||
| 500 | $ 0.75 | |||
| 1000 | $ 0.70 | |||
| Tape & Reel (TR) | 3000 | $ 0.64 | ||
| 6000 | $ 0.59 | |||
| 15000 | $ 0.55 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 1.24 | |
| 10 | $ 1.21 | |||
| 25 | $ 1.08 | |||
| 50 | $ 0.98 | |||
| 100 | $ 0.91 | |||
Description
General part information
SPVM11 Series
Switch SPST-NO Surface Mount
