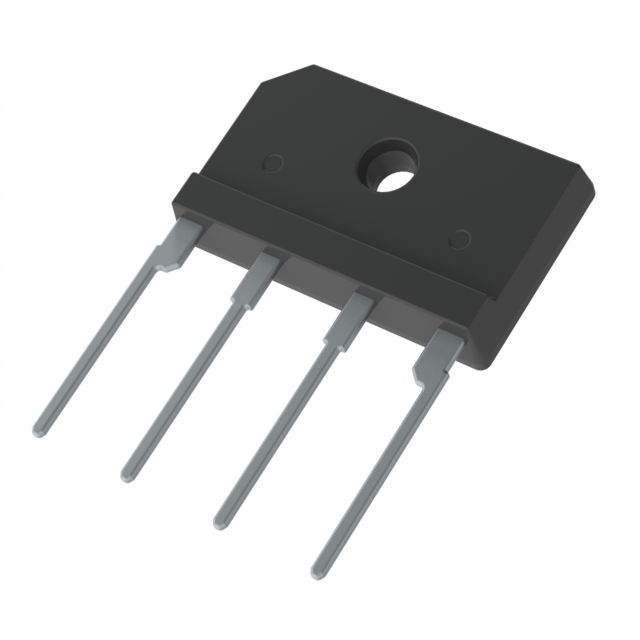

KBJ3510_T0_00601
ActivePanjit International Inc.
BRIDGE RECT 1PHASE 1KV 35A KBJ
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KBJ3510_T0_00601
ActivePanjit International Inc.
BRIDGE RECT 1PHASE 1KV 35A KBJ
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KBJ3510_T0_00601 |
|---|---|
| Current - Average Rectified (Io) | 35 A |
| Current - Reverse Leakage @ Vr | 5 µA |
| Diode Type | Single Phase |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | KBJ, 4-SIP |
| Supplier Device Package | KBJ |
| Technology | Standard |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V |
| Voltage - Peak Reverse (Max) [Max] | 1000 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.79 | |
| 10 | $ 1.14 | |||
| 100 | $ 0.76 | |||
| 500 | $ 0.60 | |||
| 1000 | $ 0.52 | |||
| 2000 | $ 0.50 | |||
| 5000 | $ 0.46 | |||
| 10000 | $ 0.45 | |||
Description
General part information
KBJ3510 Series
Bridge Rectifier Single Phase Standard 1 kV Through Hole KBJ
