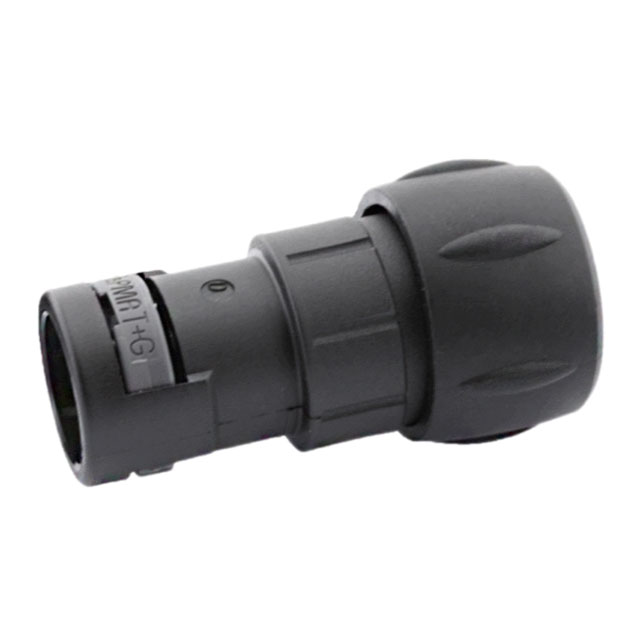

UTS6FC14E5S

Active

Souriau-Sunbank by Eaton

CONN PLUG FMALE 5P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

UTS6FC14E5S

Active

Souriau-Sunbank by Eaton

CONN PLUG FMALE 5P GOLD SLDR CUP

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UTS6FC14E5S

Applications	Instrumentation, Energy, Lighting, Telecommunications
Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	16 Áin
Contact Finish Thickness - Mating	0.41 Ám
Contact Material	Brass
Current Rating (Amps)	12 A
Fastening Type	Bayonet Lock
Features	Backshell, UV Resistant, Conduit Adapter, Coupling Nut
Ingress Protection	IP68, IP69K
Insert Material	Polychloroprene
Material Flammability Rating	UL94 HB
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Primary Material	Plastic
Shell Size - Insert	14-5
Shielding	Unshielded
Voltage Rating	600 V

UTS6F Series

Part	Contact Size	Mounting Type	Material Flammability Rating	Orientation	Ingress Protection	Note	Fastening Type	Type	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Shell Size - Insert	Number of Positions	Connector Type	Features	Contact Shape	Shielding	Shell Size - Insert [Min] [custom]	Shell Size - Insert [Max] [custom]	Current Rating (Amps)	Contact Material	Color	Applications	Backshell Material, Plating	Voltage Rating	Insert Material	Primary Material	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Size - Insert [Min]	Shell Size - Insert [Max]
Souriau-Sunbank by Eaton UTS6FC124P	16	Free Hanging (In-Line)	UL94 V-0	N	IP68 IP69K	Contacts Not Included	Bayonet Lock	For Male Pins	Black	-40 °C	105 ░C	Crimp	12-4	4	Plug Housing	Backshell Coupling Nut	Circular	Unshielded
Souriau-Sunbank by Eaton UTS6FC1823S	16	Free Hanging (In-Line)	UL94 V-0	N	IP68 IP69K	Contacts Not Included	Bayonet Lock	For Female Sockets	Black	-40 °C	105 ░C	Crimp		23	Plug Housing	Backshell Coupling Nut	Circular	Unshielded	18	23
Souriau-Sunbank by Eaton UTS6FC14E5S		Free Hanging (In-Line)	UL94 HB	N	IP68 IP69K		Bayonet Lock			-40 °C	105 ░C		14-5		Female Sockets Plug	Backshell Conduit Adapter Coupling Nut UV Resistant		Unshielded			12 A	Brass	Black	Energy Instrumentation Lighting Telecommunications	Nylon Polyamide (PA)	600 V	Polychloroprene	Plastic	Gold	16 Áin	0.41 Ám
Souriau-Sunbank by Eaton UTS6FC12E3P		Free Hanging (In-Line)	UL94 HB	N	IP68 IP69K		Bayonet Lock			-40 °C	105 ░C		12-3		Male Pins Plug	Backshell Conduit Adapter Coupling Nut UV Resistant		Unshielded			13 A	Brass	Black	Energy Instrumentation Lighting Telecommunications	Nylon Polyamide (PA)	600 V	Polychloroprene	Plastic	Gold	16 Áin	0.41 Ám
Souriau-Sunbank by Eaton UTS6FC12E14P		Free Hanging (In-Line)	UL94 HB	N	IP68 IP69K		Bayonet Lock			-40 °C	105 ░C			14	Male Pins Plug	Backshell Conduit Adapter Coupling Nut UV Resistant		Unshielded			4.5 A	Brass	Black	Energy Instrumentation Lighting Telecommunications	Nylon Polyamide (PA)	250 VDC	Polychloroprene	Plastic	Gold	16 Áin	0.41 Ám	12	14
Souriau-Sunbank by Eaton UTS6FC1832S	20	Free Hanging (In-Line)	UL94 V-0	N	IP68 IP69K	Contacts Not Included	Bayonet Lock	For Female Sockets	Black	-40 °C	105 ░C	Crimp			Plug Housing	Backshell Coupling Nut	Circular	Unshielded														18	32
Souriau-Sunbank by Eaton UTS6FC12E8P		Free Hanging (In-Line)	UL94 HB	N	IP68 IP69K		Bayonet Lock			-40 °C	105 ░C		12-8	8	Male Pins Plug	Backshell Conduit Adapter Coupling Nut UV Resistant		Unshielded			4.5 A	Brass	Black	Energy Instrumentation Lighting Telecommunications	Nylon Polyamide (PA)	250 VDC	Polychloroprene	Plastic	Gold	16 Áin	0.41 Ám
Souriau-Sunbank by Eaton UTS6FC1412S	16	Free Hanging (In-Line)	UL94 V-0	N	IP68 IP69K	Contacts Not Included	Bayonet Lock	For Female Sockets	Black	-40 °C	105 ░C	Crimp	14-12	12	Plug Housing	Backshell Coupling Nut	Circular	Unshielded
Souriau-Sunbank by Eaton UTS6FC1419S	20	Free Hanging (In-Line)	UL94 V-0	N	IP68 IP69K	Contacts Not Included	Bayonet Lock	For Female Sockets	Black	-40 °C	105 ░C	Crimp		19	Plug Housing	Backshell Coupling Nut	Circular	Unshielded	14	19
Souriau-Sunbank by Eaton UTS6FC14E15S		Free Hanging (In-Line)	UL94 HB	N	IP68 IP69K		Bayonet Lock			-40 °C	105 ░C			15	Female Sockets Plug	Backshell Conduit Adapter Coupling Nut UV Resistant		Unshielded			12 A	Brass	Black	Energy Instrumentation Lighting Telecommunications	Nylon Polyamide (PA)	600 V	Polychloroprene	Plastic	Gold	16 Áin	0.41 Ám	14	15

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 49.94
Newark	Each	1	$ 78.22
		100	$ 67.98
		500	$ 64.03
		1000	$ 60.03
		2500	$ 55.96
		5000	$ 51.98
		10000	$ 47.96

Description

General part information

UTS6F Series

5 Position Circular Connector Plug, Female Sockets Solder Cup

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
