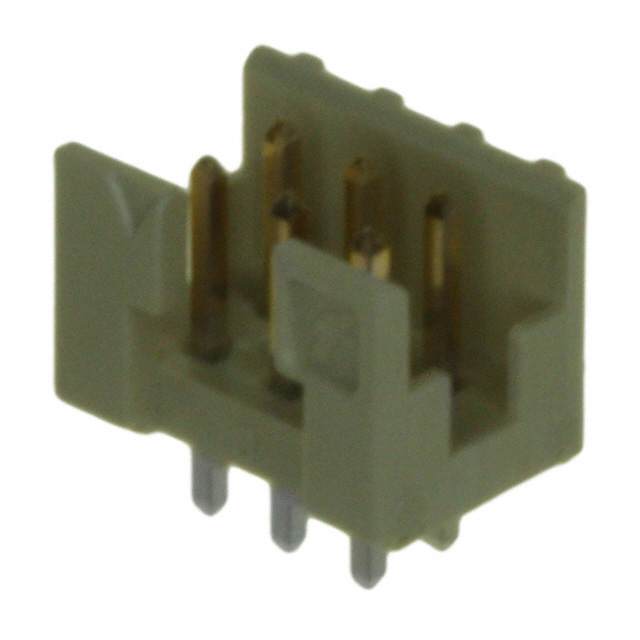

10075025-G01-06LF

Active

Amphenol ICC (FCI)

CONN HEADER VERT 6POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

Documentsdps-12-011 Other Related Document Datasheet +1

10075025-G01-06LF

Active

Amphenol ICC (FCI)

CONN HEADER VERT 6POS 2MM

Deep-Dive with AI

Documentsdps-12-011 Other Related Document Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10075025-G01-06LF

Connector Type	Header
Contact Finish - Mating	Gold, GXT™
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	2 çm
Contact Finish Thickness - Post	78.7 çin
Contact Length - Mating	4 mm
Contact Length - Mating	0.157 in
Contact Length - Post	0.079 "
Contact Length - Post	2 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2 A
Fastening Type	Detent Lock
Features	Keying Slot
Insulation Color	Natural
Insulation Height	5.6 mm
Insulation Height	0.22 in
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	200 V

10075025 Series

Part	Insulation Color	Pitch - Mating [x]	Pitch - Mating [x]	Number of Rows	Features	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Contact Material	Termination	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Fastening Type	Number of Positions Loaded	Voltage Rating	Contact Shape	Material Flammability Rating	Connector Type	Insulation Height	Insulation Height	Number of Positions	Contact Length - Mating	Contact Length - Mating	Style	Contact Finish - Post	Shrouding	Current Rating (Amps)	Contact Finish Thickness - Mating	Number of Positions
Amphenol ICC (FCI) 10075025-G01-06LF	Natural	0.079 in	2 mm	2	Keying Slot	Male Pin	0.079 in	2 mm	2 çm	78.7 çin	Gold GXT™	0.079 "	2 mm	Copper Alloy	Solder	Thermoplastic	30 Áin	0.76 Ám	Through Hole	Detent Lock	All	200 V	Square	UL94 V-0	Header	5.6 mm	0.22 in	6	4 mm	0.157 in	Board to Board Cable	Tin	Shrouded - 4 Wall	2 A
Amphenol ICC (FCI) 10075025-S01-50ULF	Natural	0.079 in	2 mm	2	Keying Slot	Male Pin	0.079 in	2 mm	2 çm	78.7 çin	Gold GXT™	0.079 "	2 mm	Copper Alloy	Solder	Thermoplastic	15 µin	0.38 µm	Through Hole	Detent Lock	All	200 V	Square	UL94 V-0	Header	5.6 mm	0.22 in	50	4 mm	0.157 in	Board to Board Cable	Tin	Shrouded - 4 Wall	2 A
Amphenol ICC (FCI) 10075025-G01-06ULF	Natural	0.079 in	2 mm	2	Keying Slot	Male Pin	0.079 in	2 mm	2 çm	78.7 çin	Gold GXT™	0.079 "	2 mm	Copper Alloy	Solder	Thermoplastic	30 Áin	0.76 Ám	Through Hole	Detent Lock	All	200 V	Square	UL94 V-0	Header	5.6 mm	0.22 in	6	4 mm	0.157 in	Board to Board Cable	Tin	Shrouded - 4 Wall	2 A
Amphenol ICC (FCI) 10075025-F01-08ALF	Natural	0.079 in	2 mm	2	Keying Slot Pick and Place	Male Pin	0.079 in	2 mm	2 çm	78.7 çin	Gold	0.079 "	2 mm	Copper Alloy	Solder	Thermoplastic			Through Hole	Detent Lock	All	200 V	Square	UL94 V-0	Header	5.6 mm	0.22 in	8	4 mm	0.157 in	Board to Board Cable	Tin	Shrouded - 4 Wall	2 A	Flash
Amphenol ICC (FCI) 10075025-G01-48ULF	Natural	0.079 in	2 mm	2	Keying Slot	Male Pin	0.079 in	2 mm	2 çm	78.7 çin	Gold GXT™	0.079 "	2 mm	Copper Alloy	Solder	Thermoplastic	30 Áin	0.76 Ám	Through Hole	Detent Lock	All	200 V	Square	UL94 V-0	Header	5.6 mm	0.22 in	48	4 mm	0.157 in	Board to Board Cable	Tin	Shrouded - 4 Wall	2 A
Amphenol ICC (FCI) 10075025-S01-34ULF	Natural	0.079 in	2 mm	2	Keying Slot	Male Pin	0.079 in	2 mm	2 çm	78.7 çin	Gold GXT™	0.079 "	2 mm	Copper Alloy	Solder	Thermoplastic	15 µin	0.38 µm	Through Hole	Detent Lock	All	200 V	Square	UL94 V-0	Header	5.6 mm	0.22 in	34	4 mm	0.157 in	Board to Board Cable	Tin	Shrouded - 4 Wall	2 A
Amphenol ICC (FCI) 10075025-G01-14ULF	Natural	0.079 in	2 mm	2	Keying Slot	Male Pin	0.079 in	2 mm	2 çm	78.7 çin	Gold GXT™	0.079 "	2 mm	Copper Alloy	Solder	Thermoplastic	30 Áin	0.76 Ám	Through Hole	Detent Lock	All	200 V	Square	UL94 V-0	Header	5.6 mm	0.22 in	14	4 mm	0.157 in	Board to Board Cable	Tin	Shrouded - 4 Wall	2 A
Amphenol ICC (FCI) 10075025-F01-48ULF	Natural	0.079 in	2 mm	2	Keying Slot	Male Pin	0.079 in	2 mm	2 çm	78.7 çin	Gold	0.079 "	2 mm	Copper Alloy	Solder	Thermoplastic			Through Hole	Detent Lock	All	200 V	Square	UL94 V-0	Header	5.6 mm	0.22 in	48	4 mm	0.157 in	Board to Board Cable	Tin	Shrouded - 4 Wall	2 A	Flash
Amphenol ICC (FCI) 10075025-F01-16ULF	Natural	0.079 in	2 mm	2	Keying Slot	Male Pin	0.079 in	2 mm	2 çm	78.7 çin	Gold	0.079 "	2 mm	Copper Alloy	Solder	Thermoplastic			Through Hole	Detent Lock	All	200 V	Square	UL94 V-0	Header	5.6 mm	0.22 in		4 mm	0.157 in	Board to Board Cable	Tin	Shrouded - 4 Wall	2 A	Flash	16
Amphenol ICC (FCI) 10075025-G01-50ULF	Natural	0.079 in	2 mm	2	Keying Slot	Male Pin	0.079 in	2 mm	2 çm	78.7 çin	Gold GXT™	0.079 "	2 mm	Copper Alloy	Solder	Thermoplastic	30 Áin	0.76 Ám	Through Hole	Detent Lock	All	200 V	Square	UL94 V-0	Header	5.6 mm	0.22 in	50	4 mm	0.157 in	Board to Board Cable	Tin	Shrouded - 4 Wall	2 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1.76
		10	$ 1.34
		100	$ 1.07
