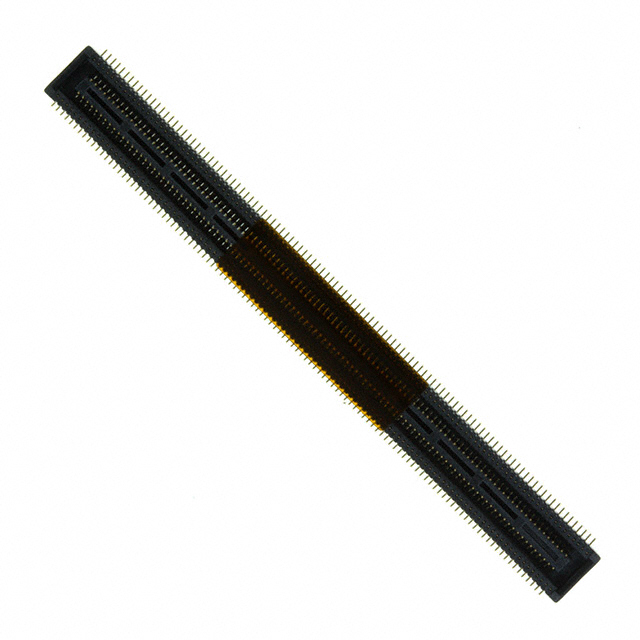

WA6F214VA1TR500

Obsolete

JAE Electronics

CONN RCPT 214POS SMD GOLD

Search across all available documentation for this part.

Obsolete

JAE Electronics

CONN RCPT 214POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	WA6F214VA1TR500

Connector Type	Receptacle, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Board Guide
Height Above Board	0.115 in
Height Above Board	2.92 mm
Mated Stacking Heights	3 mm
Mounting Type	Surface Mount
Number of Positions	214
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Mounting Type	Height Above Board	Height Above Board	Contact Finish Thickness	Contact Finish Thickness	Features	Number of Rows	Number of Positions	Pitch [x]	Pitch [x]	Connector Type	Contact Finish	Mated Stacking Heights
JAE Electronics WA6F214VA1TR1800	Surface Mount	0.115 in	2.92 mm	4 Áin	0.1 Ám	Board Guide	2	214	0.016 in	0.4 mm	Receptacle Outer Shroud Contacts	Gold	3 mm
JAE Electronics WA6F214VA1TR500	Surface Mount	0.115 in	2.92 mm	4 Áin	0.1 Ám	Board Guide	2	214	0.016 in	0.4 mm	Receptacle Outer Shroud Contacts	Gold	3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

214 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold
