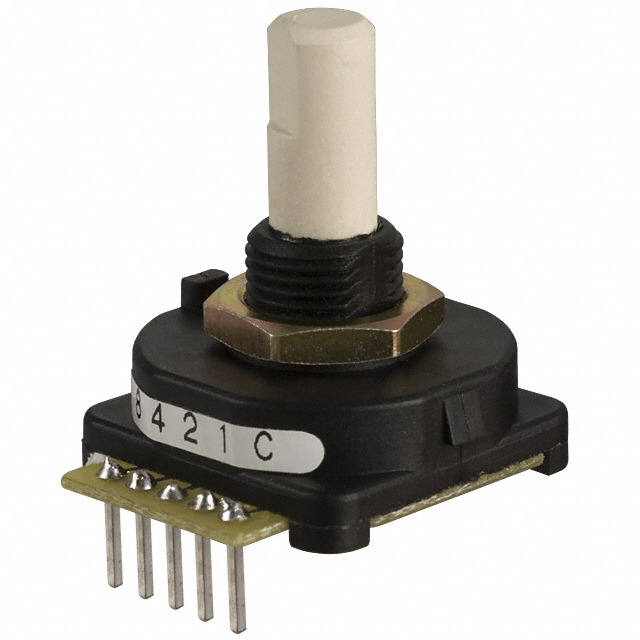

25LB22-H

Active

Grayhill Inc.

ROTARY ENCODER, MECHANICAL, ABSOLUTE, 16 PPR, 16 DETENTS, VERTICAL, WITHOUT PUSH SWITCH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

25LB22-H

Active

Grayhill Inc.

ROTARY ENCODER, MECHANICAL, ABSOLUTE, 16 PPR, 16 DETENTS, VERTICAL, WITHOUT PUSH SWITCH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	25LB22-H

Actuator Type	0.25
Actuator Type	Flatted End
Built in Switch	False
Detent	True
Encoder Type	Mechanical
Mounting Type	PCB Through Hole, Panel
Orientation	Vertical
Output Type	Hexadecimal (Absolute)
Pulses per Revolution	16
Rotational Life (Cycles Min) [Min]	100K
Termination Style	PC Pin

25LB22 Series

Part	Output Type	Orientation	Pulses per Revolution	Mounting Type	Actuator Type	Actuator Type	Termination Style	Rotational Life (Cycles Min) [Min]	Encoder Type
Grayhill Inc. 25LB22-Q-Z	Quadrature (Incremental)	Vertical	16	Panel PCB Through Hole	0.25	Flatted End	PC Pin	100K	Mechanical
Grayhill Inc. 25LB22-G-Z	Gray Code (Absolute)	Vertical	16	Panel PCB Through Hole	0.25	Flatted End	PC Pin	100K	Mechanical
Grayhill Inc. 25LB22-H-Z	Hexadecimal (Absolute)	Vertical	16	Panel PCB Through Hole	0.25	Flatted End	PC Pin	100K	Mechanical
Grayhill Inc. 25LB22-H	Hexadecimal (Absolute)	Vertical	16	Panel PCB Through Hole	0.25	Flatted End	PC Pin	100K	Mechanical

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 28.38
		10	$ 22.84
		100	$ 18.39
Newark	Each	25	$ 26.05
		50	$ 25.19
		100	$ 24.32

Description

General part information

25LB22 Series

The 25LB22-H is an economical Single Deck Encoder with 100% tin over nickel-plated copper alloy terminals, gold-plated beryllium copper contacts and black reinforced thermoplastic housing. The encoder also comes with nickel-plated stainless steel detent ball, tinned music wire detent spring and tin-plated stainless steel mounting bracket.
