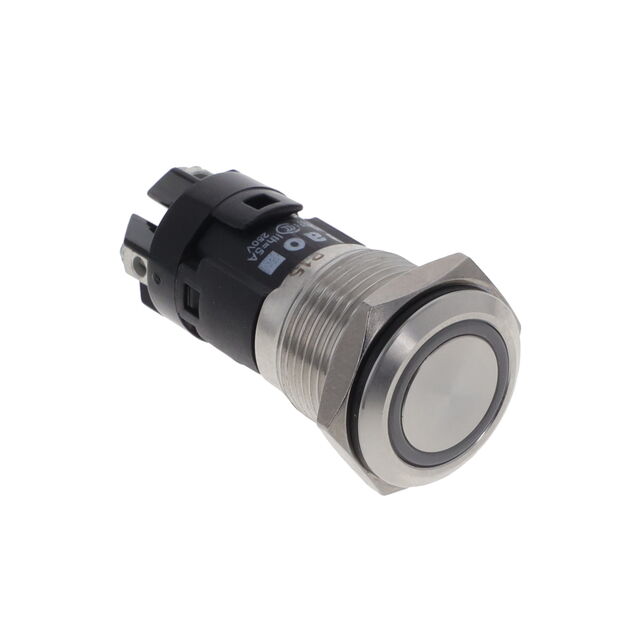

82-4152.21A4

Active

EAO

PUSH BUTTON SWITCH ROHS

Search across all available documentation for this part.

Active

EAO

PUSH BUTTON SWITCH ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	82-4152.21A4

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPDT
Color - Actuator/Cap	Silver
Current Rating (Amps)	3 A
Electrical Life	50000 Cycles
Illumination Type, Color	Green/Red, LED
Illumination Voltage (Nominal)	24 VAC/DC
Ingress Protection	IP67, IP65
Mechanical Life	500000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-On
Termination Style	Screw Terminal
Type	Illuminated, Standard
Voltage Rating - AC	240 V
Voltage Rating - DC	240 V

Part	Current	Ratings	Lamp Color	Lens Color	Lens Size [diameter]	Ingress Protection	Type	Voltage	Panel Cutout Shape	Panel Cutout Dimensions	Panel Cutout Dimensions	Termination Style	Panel Cutout Dimensions [diameter]	Actuator Type	Mechanical Life	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Switch Function	Color - Actuator/Cap	Current Rating (Amps)	Electrical Life	Actuator Marking	Circuit	Illumination Type, Color	Voltage Rating - AC	Illumination Voltage (Nominal)
EAO 82-4152.02A4	7 mA	DC	Green Red	Colorless	18 mm	IP65 IP67	LED	24 V	Round	0.64 in	16.2 mm	Solder Lug
EAO 82-4152.21A4						IP65 IP67	Illuminated Standard					Screw Terminal	16 mm	Button Flush Round	500000 Cycles	240 V	70 °C	-30 ░C	Panel Mount Front	On-On	Silver	3 A	50000 Cycles	No Marking	SPDT	Green/Red LED	240 V	24 VAC/DC
EAO 82-4152.0214	7 mA	AC/DC	Red	Colorless	18 mm	IP65 IP67	LED	24 V	Round	0.64 in	16.2 mm	Solder Lug
EAO 82-4152.0234	7 mA	AC/DC	Green	Colorless	18 mm	IP65 IP67	LED	24 V	Round	0.64 in	16.2 mm	Solder Lug
EAO 82-4152.22A4						IP65 IP67	Illuminated Standard					Screw Terminal	16 mm	Button Flush Round	500000 Cycles	240 V	70 °C	-30 ░C	Panel Mount Front	On-On	Silver	3 A	50000 Cycles	No Marking	SPDT	Green/Red LED	240 V	24 VAC/DC
EAO 82-4152.12A4						IP65 IP67	Illuminated Standard					Screw Terminal	16 mm	Button Flush Round	1000000 Cycles	240 V	70 °C	-30 ░C	Panel Mount Front	On-Mom	Silver	3 A	50000 Cycles	No Marking	SPDT	Green/Red LED	240 V	24 VAC/DC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Front
