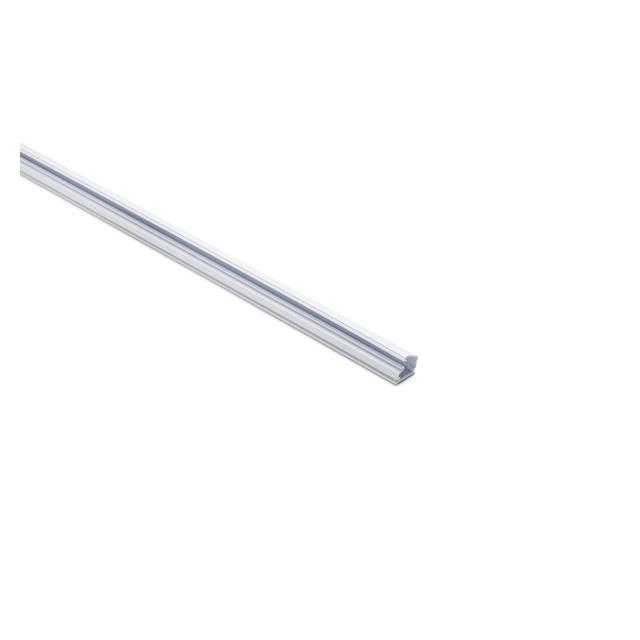

TSR1W-6A

Active

HELLERMANNTYTON

RACEWAY DUCT, 0.5 " (H) X 0.75 " (W) X 6 FT (L), WHITE, PVC, TSR1 SERIES

Search across all available documentation for this part.

Active

HELLERMANNTYTON

RACEWAY DUCT, 0.5 " (H) X 0.75 " (W) X 6 FT (L), WHITE, PVC, TSR1 SERIES

Technical Specifications

Parameters and characteristics for this part

Specification	TSR1W-6A

Color	White
Features	No Mounting Holes, Tamper Resistant, Attached Latching Lid, One-Piece Design
Height [z]	0.512 in
Height [z]	13 mm
Length	6 ft
Length	1.83 m
Material	Poly-Vinyl Chloride (PVC)
Mounting Type	Adhesive, Screw
Width	19.18 mm
Width [y]	0.755 in
Wire Duct Type	Single Channel, Solid (Raceway)

Part	Color	For Use With/Related Products	Accessory Type	Mounting Type	Wire Duct Type	Width [y]	Width	Height [z]	Height [z]	Length [x]	Length [x]	Features	Material	Length	Length
HELLERMANNTYTON TSR1W-33	White	TSR1 3/4" Low Voltage Surface Raceway	Fitting - Inside Corner
HELLERMANNTYTON TSR1W-33-1	White	TSR1 3/4" Low Voltage Surface Raceway	Fitting - Inside Corner
HELLERMANNTYTON TSR1W-8A	White			Adhesive Screw	Single Channel Solid (Raceway)	0.755 in	19.18 mm	0.512 in	13 mm	2.44 m	8 ft	Attached Latching Lid No Mounting Holes One-Piece Design Tamper Resistant	Poly-Vinyl Chloride (PVC)
HELLERMANNTYTON TSR1W-6A	White			Adhesive Screw	Single Channel Solid (Raceway)	0.755 in	19.18 mm	0.512 in	13 mm			Attached Latching Lid No Mounting Holes One-Piece Design Tamper Resistant	Poly-Vinyl Chloride (PVC)	6 ft	1.83 m
HELLERMANNTYTON TSR1W-29-1	White	TSR1 3/4" Low Voltage Surface Raceway	Fitting - Outside Corner
