5550H-10-120-5

Active

3M (TC)

THERM PAD 5M X 120MM GRY/WHT

Search across all available documentation for this part.

Active

3M (TC)

THERM PAD 5M X 120MM GRY/WHT

Technical Specifications

Parameters and characteristics for this part

Specification	5550H-10-120-5

Adhesive	Tacky - Both Sides
Backing, Carrier	Polyethylene-Terephthalate (PET)
Color	Gray, White
Material	Acrylic Elastomer
Shape	Rectangular
Shelf Life	12 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature	70 °F
Storage/Refrigeration Temperature	21 °C
Thermal Conductivity	3 W/m-K
Thickness	0.0394 in
Thickness	1 mm
Type	Interface Pad, Roll
Usage	Thermally Conductive

Part	Backing, Carrier	Usage	Type	Color	Thermal Conductivity	Shelf Life Start	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Shelf Life	Adhesive	Thickness	Thickness	Material	Shape
3M (TC) 5550H-05-120-5	Polyethylene-Terephthalate (PET)	Thermally Conductive	Interface Pad Roll	Gray White	3 W/m-K	Date of Manufacture	70 °F	21 °C	12 Months	Tacky - Both Sides	0.0197 in	0.5 mm	Acrylic Elastomer	Rectangular
3M (TC) 5550H-10-120-5	Polyethylene-Terephthalate (PET)	Thermally Conductive	Interface Pad Roll	Gray White	3 W/m-K	Date of Manufacture	70 °F	21 °C	12 Months	Tacky - Both Sides	0.0394 in	1 mm	Acrylic Elastomer	Rectangular

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

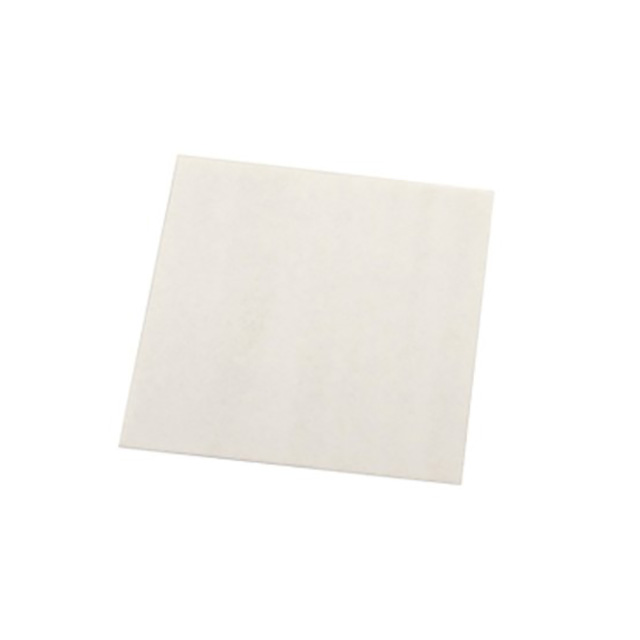

Thermal Pad Gray, White 5.00m x 120.00mm Rectangular Tacky - Both Sides
