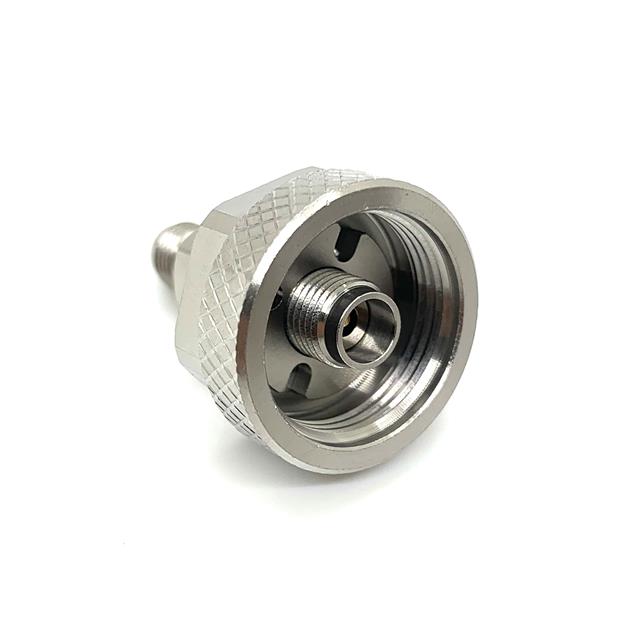

NMD2.4F-3.5F

Active

LOW PIM RF

NMD, VNA DC~34GHZ HIGH PRECISION

Search across all available documentation for this part.

Active

LOW PIM RF

NMD, VNA DC~34GHZ HIGH PRECISION

Technical Specifications

Parameters and characteristics for this part

Part	Frequency - Max [Max]	Adapter Series [Min]	Adapter Series [Max]	Convert From (Adapter End)	Center Gender	Style	Body Material	Mounting Type	Body Finish	Conversion Type	Convert To (Adapter End)	Adapter Series	Adapter Series	Convert From (Adapter End)	Convert To (Adapter End)	Adapter Type
LOW PIM RF NMD2.4F-3.5F	34 GHz	2.4 mm	3.5 mm	2.4 mm	Female to Female	Straight	Stainless Steel	Free Hanging (In-Line)	Passivated	Between Series	3.5mm Jack Female Socket
LOW PIM RF NMD2.4F-NF	19 GHz				Female to Female	Straight	Stainless Steel	Free Hanging (In-Line)	Passivated	Between Series		N	2.4 mm	Female Socket N Jack	2.4 mm	Jack to Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Adapter Coaxial Connector 2.4mm (APC-2.4, OS-50) Jack, Female Socket To 3.5mm Jack, Female Socket

Technical documentation and resources

No documents available
