PAXH0100

Obsolete

RED LION CONTROLS

AMMETER/VOLTMETER LED PNL MOUNT

Search across all available documentation for this part.

Obsolete

RED LION CONTROLS

AMMETER/VOLTMETER LED PNL MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	PAXH0100

Display Characters - Height [z]	14.2 mm
Display Characters - Height [z]	0.56 in
Display Type	LED - Green Characters
Features	Option Cards Available, Excitation Supply
Ingress Protection	IP65 - Dust Tight, Water Resistant
Measuring Range [Max]	300 VAC, 5 A
Measuring Range [Min]	0 VAC, 0 A
Measuring Type	Voltage, Current
Number of Characters Per Row	5
Output Type	1.81 mOhm
Panel Cutout Dimensions [x]	92 mm
Panel Cutout Dimensions [y]	45 mm
Termination Style	Screw Terminal
Type	Ammeter, Volmeter
Voltage - Supply [Max]	250 VAC
Voltage - Supply [Min]	85 VAC

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Display Type	Display Characters - Height [z]	Display Characters - Height [z]	Number of Characters Per Row	Measuring Range [Max]	Measuring Range [Min]	Features	Ingress Protection	Output Type	Type	Measuring Type	Termination Style	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]
RED LION CONTROLS PAXH0100	85 VAC	250 VAC	LED - Green Characters	14.2 mm	0.56 in	5	5 A 300 VAC	0 VAC 0 A	Excitation Supply Option Cards Available	IP65 - Dust Tight Water Resistant	1.81 mOhm	Ammeter Volmeter	Current Voltage	Screw Terminal	92 mm	45 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 626.15

General part information

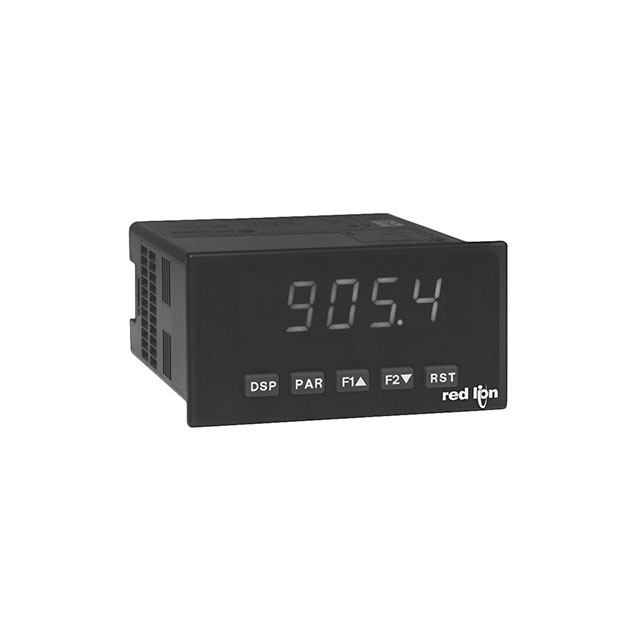

Ammeter, Voltmeter LED - Green Characters Display Panel Mount
