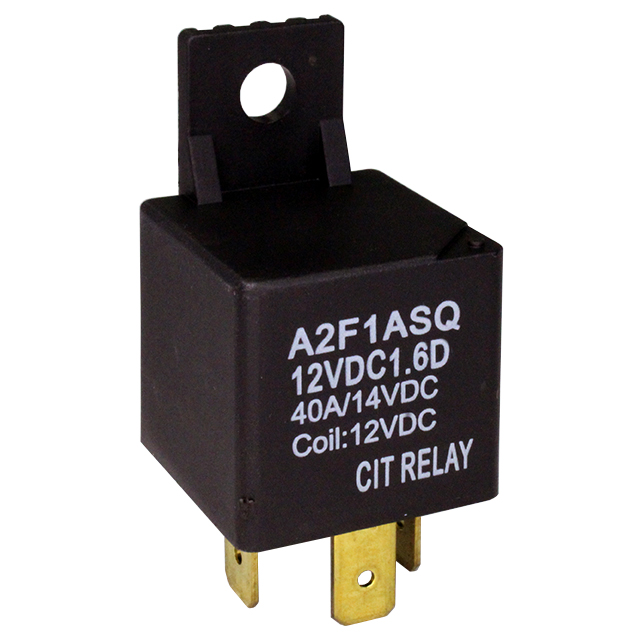

A2F1ASQ12VDC1.6D
ActiveCIT Relay and Switch
75V@DC 40A 12V ONE NORMALLY OPEN: 1A (SPST-NO) AUTOMOTIVE RELAYS ROHS
Deep-Dive with AI
Search across all available documentation for this part.
A2F1ASQ12VDC1.6D
ActiveCIT Relay and Switch
75V@DC 40A 12V ONE NORMALLY OPEN: 1A (SPST-NO) AUTOMOTIVE RELAYS ROHS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | A2F1ASQ12VDC1.6D |
|---|---|
| Coil Current | 133.3 mA |
| Coil Power | 1.6 W |
| Coil Resistance | 90 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 40 A |
| Features | Sealed - Fully, Diode |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 7 ms |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 5 ms |
| Switching Voltage | 75 VDC |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
A2F1ASQ Series
75V@DC 40A 12V ONE NORMALLY OPEN: 1A (SPST-NO) AUTOMOTIVE RELAYS ROHS
