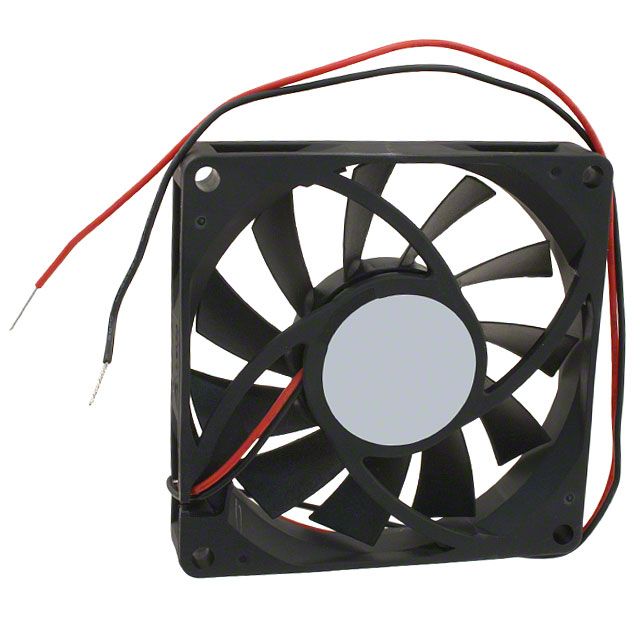

EFB0812HB

Active

Delta Electronics

FAN AXIAL 80X15MM 12VDC WIRE

Search across all available documentation for this part.

Active

Delta Electronics

FAN AXIAL 80X15MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Material - Blade	Fan Type	Static Pressure	Static Pressure	Voltage - Rated	Current Rating (Amps)	Approval Agency	Width [x]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Termination	RPM	Air Flow	Air Flow	Bearing Type	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Weight	Weight	Lifetime @ Temp.	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]	Noise	Features
Delta Electronics EFB0812HHB	Plastic	Tubeaxial	0.171 in H2O	42.6 Pa	12 VDC	0.33 A	CE CSA UL VDE	15 mm	70 °C	70 °C	-10 °C	-10 °C	2 Wire Leads	3800 RPM	1.37 m³/min	48.8 CFM	Ball	5 VDC	13.2 VDC	Plastic	0.148 lb	67.13 g	70000 Hrs	3.96 W	80 mm	80 mm	41 dB
Delta Electronics EFB0812HHB-F00	Plastic	Tubeaxial	0.171 in H2O	42.6 Pa	12 VDC	0.33 A	CE CSA UL VDE	15 mm	70 °C	70 °C	-10 °C	-10 °C	3 Wire Leads	3800 RPM	1.37 m³/min	48.8 CFM	Ball	5 VDC	13.2 VDC	Plastic	0.148 lb	67.13 g	70000 Hrs	3.96 W	80 mm	80 mm	41 dB	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics EFB0812HB	Plastic	Tubeaxial	0.134 in H2O	33.5 Pa	12 VDC	0.21 A	CE CSA UL VDE	15 mm					2 Wire Leads	3300 RPM			Ball	5 VDC	13.8 VDC	Plastic	0.148 lb	67.13 g		2.52 W	80 mm	80 mm	37 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Ball 42.4 CFM (1.19m³/min) 2 Wire Leads
