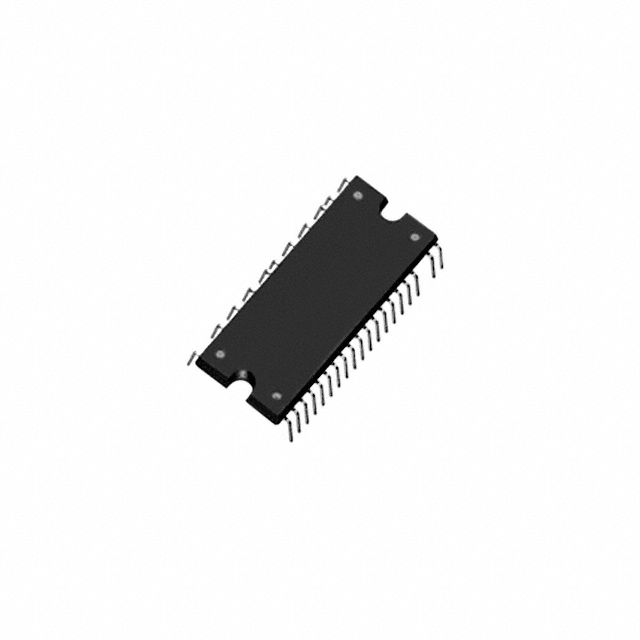

SIM6812M
ActiveSanken Electric USA Inc.
IC BRIDGE DRIVER PAR 40DIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SIM6812M
ActiveSanken Electric USA Inc.
IC BRIDGE DRIVER PAR 40DIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SIM6812M |
|---|---|
| Applications | Home Appliance |
| Current - Output | 2.5 A |
| Function | Driver |
| Interface | Logic |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -20 °C |
| Output Configuration | Half Bridge (3) |
| Package / Case | 16.7 mm |
| Package / Case | 29 Leads, 0.657 in |
| Package / Case | 40-DIP |
| Supplier Device Package | 40-DIP LF2971 |
| Technology | Power MOSFET |
| Voltage - Load | 500 V |
| Voltage - Supply [Max] | 16.5 V |
| Voltage - Supply [Min] | 13.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 6.58 | |
| 10 | $ 4.43 | |||
| 100 | $ 3.21 | |||
| 500 | $ 2.69 | |||
Description
General part information
SIM6812 Series
Motor Driver Power MOSFET Logic 40-DIP LF2971
