G125-0010005 - G125-0010005

G125-0010005

Active
Harwin Inc.

CONTACT, GECKO G125 SERIES, SOCKET, CRIMP, HARWIN GECKO G125 SERIES HOUSING CONNECTORS, 26 AWG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsG125-2040696L0Datasheet+5
G125-0010005 - G125-0010005

G125-0010005

Active
Harwin Inc.

CONTACT, GECKO G125 SERIES, SOCKET, CRIMP, HARWIN GECKO G125 SERIES HOUSING CONNECTORS, 26 AWG

Deep-Dive with AI

DocumentsG125-2040696L0Datasheet+5

Technical Specifications

Parameters and characteristics for this part

SpecificationG125-0010005
Contact FinishGold
Contact Finish Thickness8 çin
Contact Finish Thickness0.203 çm
Contact TerminationCrimp
Pin or SocketSocket
Wire Gauge26 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 1.40
10$ 1.19
25$ 1.12
50$ 1.06
100$ 1.01
300$ 0.94
500$ 0.90
1000$ 0.86
2500$ 0.81
NewarkEach 1$ 1.40
10$ 1.14
100$ 0.93
250$ 0.87
500$ 0.81
1000$ 0.76
2500$ 0.70

Description

General part information

G125-001 Series

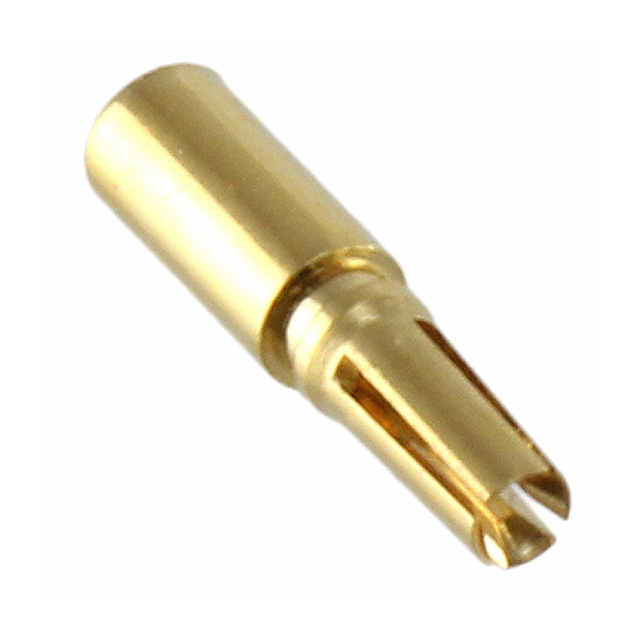

The G125-0010005 is a 1.25mm Gecko female Crimp Contact with gold plated beryllium copper contacts and gold plated termination. The G125 series socket has straight connector orientation and cable (crimp) connection type. Suitable for 26AWG cable and Ø0.4mm mating pin size. It is used with crimp housings G125-204 series.
