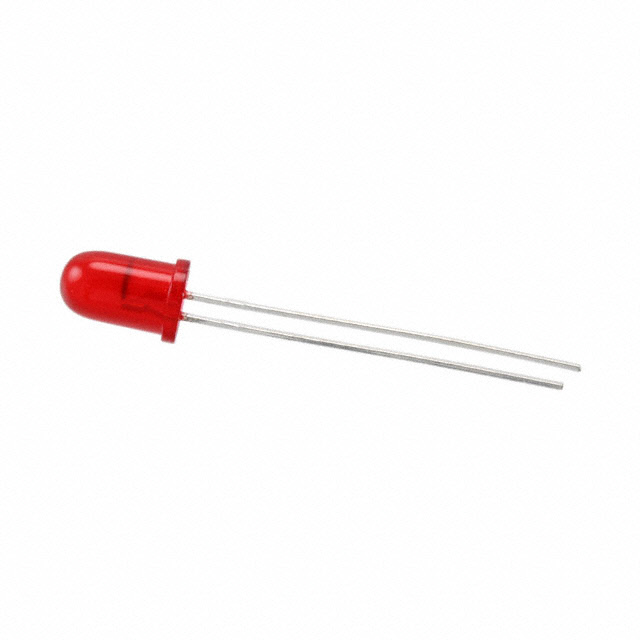

WP56BSRD/B

Obsolete

Kingbright

PLUGIN,D=5MM LED INDICATION - DISCRETE ROHS

Search across all available documentation for this part.

Obsolete

Kingbright

PLUGIN,D=5MM LED INDICATION - DISCRETE ROHS

Technical Specifications

Parameters and characteristics for this part

Part	Viewing Angle	Package / Case	Supplier Device Package	Wavelength - Dominant	Millicandela Rating	Configuration	Lens Size	Lens Size	Wavelength - Peak	Lens Style	Size / Dimension [diameter]	Color	Mounting Type	Height (Max) [Max] [z]	Lens Transparency	Features	Lens Color
Kingbright WP56BID	60 °	Radial	T-1 3/4 BLINKING	617 nm	25 mcd	Standard	T-1 3/4	5 mm	627 nm	Round with Domed Top	5 mm	Red	Through Hole	8.6 mm	Diffused	Flashing	Red
Kingbright WP56BYD	60 °	Radial	T-1 3/4 BLINKING	588 nm	20 mcd	Standard	T-1 3/4	5 mm	590 nm	Round with Domed Top	5 mm	Yellow	Through Hole	8.6 mm	Diffused	Flashing	Yellow
Kingbright WP56BSRD/B	60 °	Radial	T-1 3/4 (5mm)	640 nm	70 mcd	Standard	T-1 3/4	5 mm	655 nm	Round with Domed Top	5 mm	Red	Through Hole	8.6 mm	Diffused	Flashing	Red
Kingbright WP56BGD	60 °	Radial	T-1 3/4 BLINKING	568 nm	30 mcd	Standard	T-1 3/4	5 mm	565 nm	Round with Domed Top	5 mm	Green	Through Hole	8.6 mm	Diffused	Flashing	Green

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

LCSC	N/A	1	$ 0.00

General part information

Red 640nm LED Indication - Discrete 14V Radial
