NYW06025024BSS-W-12
ActiveYS TECH USA

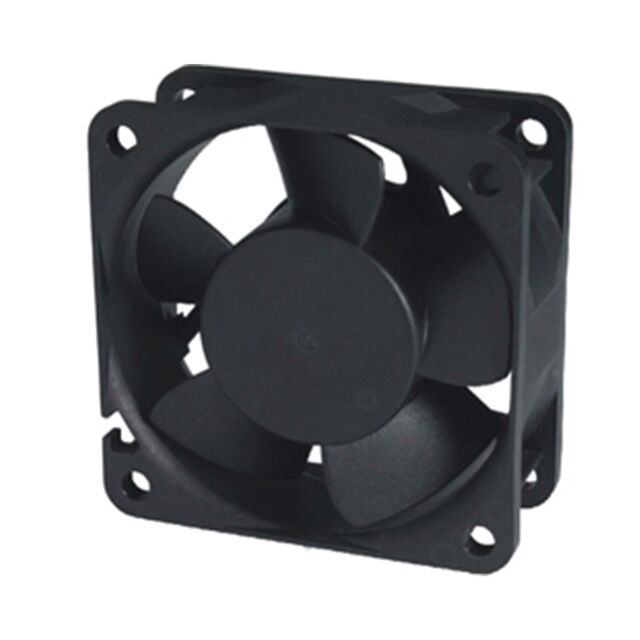

FAN AXIAL 60X25MM 24VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NYW06025024BSS-W-12
ActiveYS TECH USA
FAN AXIAL 60X25MM 24VDC WIRE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NYW06025024BSS-W-12 |
|---|---|
| Air Flow | 31.2 CFM |
| Air Flow | 0.873 m³/min |
| Bearing Type | Ball |
| Current Rating (Amps) | 110 mA |
| Fan Type | Tubeaxial |
| Lifetime @ Temp. | 65000 Hrs |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Noise | 51.5 dB |
| Power (Watts) | 2.64 W |
| RPM | 6500 RPM |
| Size / Dimension [x] | 60 mm |
| Size / Dimension [y] | 60 mm |
| Static Pressure | 124.5 Pa |
| Static Pressure | 0.5 in H2O |
| Termination | 2 Wire Leads |
| Voltage - Rated | 24 VDC |
| Voltage Range [Max] | 26.4 VDC |
| Voltage Range [Min] | 12 VDC |
| Width [y] | 25 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 19.40 | |
| 20 | $ 16.15 | |||
| 200 | $ 14.35 | |||
| 500 | $ 10.80 | |||
| 1000 | $ 9.95 | |||
| 5000 | $ 9.25 | |||
Description
General part information
NYW06025024 Series
Fan Tubeaxial 24VDC Square - 60mm L x 60mm H Ball 31.2 CFM (0.873m³/min) 2 Wire Leads
