315-032-500-268
ActiveEDAC Inc.

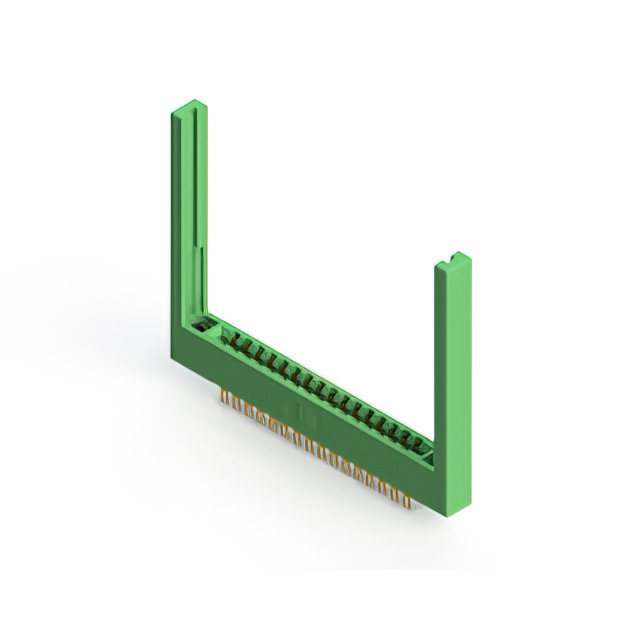

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 32 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
315-032-500-268
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 32 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 315-032-500-268 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Number of Positions/Bay/Row [custom] | 16 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 2 |
315-032 Series
| Part | Number of Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Card Type | Flange Feature | Termination | Contact Type | Mounting Type | Color | Termination Rows | Gender | Read Out | Contact Material | Number of Positions/Bay/Row [custom] | Material - Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Pitch [x] | Pitch [x] | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | Solder | Semi Bellows | Panel Mount Through Hole | Green | 2 | Female | Dual | Copper Alloy | 16 | Polyester Thermoplastic | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Gold | 10 Áin | 0.25 Ám | |||
EDAC Inc. | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Flush Mount M3 Threaded Insert Top Opening | Solder | Semi Bellows | Board Edge Straddle Mount | Green | 2 | Female | Dual | Copper Alloy | 16 | Polyester Thermoplastic | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Gold | 10 Áin | 0.25 Ám | Card Extender | ||
EDAC Inc. | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Solder Eyelet(s) | Semi Bellows | Free Hanging (In-Line) | Green | 2 | Female | Dual | Copper Alloy | 16 | Polyester Thermoplastic | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Gold | 10 Áin | 0.25 Ám | ||||
EDAC Inc. | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | Solder | Semi Bellows | Board Edge Straddle Mount | Green | 2 | Female | Dual | Copper Alloy | 16 | Polyester Thermoplastic | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Gold | 10 Áin | 0.25 Ám | Card Extender | ||
EDAC Inc. | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | Solder Eyelet(s) | Semi Bellows | Green | 2 | Female | Dual | Copper Alloy | 16 | Polyester Thermoplastic | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Gold | 10 Áin | 0.25 Ám | ||||
EDAC Inc. | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | Solder | Semi Bellows | Board Edge Straddle Mount | Green | 2 | Female | Dual | Copper Alloy | 16 | Polyester Thermoplastic | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Gold | 10 Áin | 0.25 Ám | |||
EDAC Inc. | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Solder | Semi Bellows | Board Edge Straddle Mount | Green | 2 | Female | Dual | Copper Alloy | 16 | Polyester Thermoplastic | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Gold | 10 Áin | 0.25 Ám | Card Extender | |||
EDAC Inc. | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Solder | Semi Bellows | Through Hole | Green | 2 | Female | Dual | Copper Alloy | 16 | Polyester Thermoplastic | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Gold | 10 Áin | 0.25 Ám | ||||
EDAC Inc. | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Flush Mount M3 Threaded Insert Top Opening | Solder | Semi Bellows | Panel Mount Through Hole | Green | 2 | Female | Dual | Copper Alloy | 16 | Polyester Thermoplastic | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Gold | 10 Áin | 0.25 Ám | |||
EDAC Inc. | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Floating Bobbin Flush Mount | Solder | Semi Bellows | Panel Mount Through Hole | Green | 2 | Female | Dual | Copper Alloy | 16 | Polyester Thermoplastic | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Gold | 10 Áin | 0.25 Ám | 0.116 in | 2.95 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
315-032 Series
32 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
