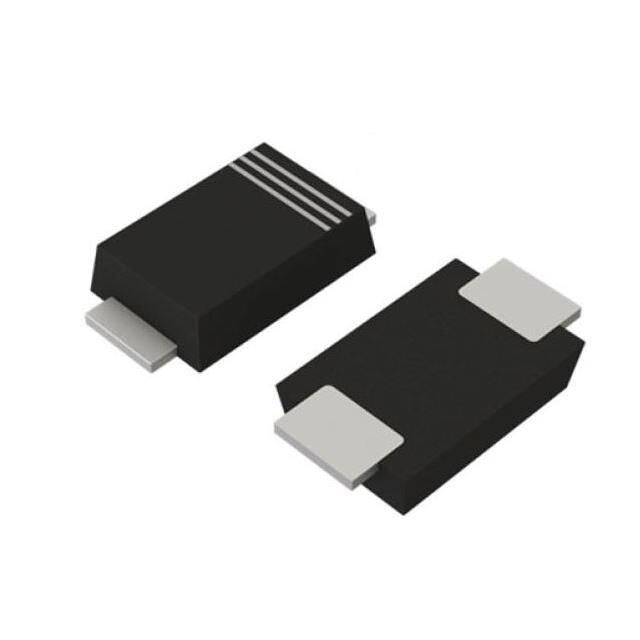

YQ3LAM10DTR
ActiveRohm Semiconductor
TRENCH MOS STRUCTURE, 100V, 3A, PMDTM, HIGHLY EFFICIENT SBD
Deep-Dive with AI
Search across all available documentation for this part.
YQ3LAM10DTR
ActiveRohm Semiconductor
TRENCH MOS STRUCTURE, 100V, 3A, PMDTM, HIGHLY EFFICIENT SBD
Technical Specifications
Parameters and characteristics for this part
| Specification | YQ3LAM10DTR |
|---|---|
| Capacitance @ Vr, F | 140 pF |
| Current - Average Rectified (Io) | 3 A |
| Current - Reverse Leakage @ Vr | 30 µA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | 175 °C |
| Package / Case | SOD-128 |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | PMDTM |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 640 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.60 | |
| 10 | $ 0.54 | |||
| 100 | $ 0.36 | |||
| 500 | $ 0.31 | |||
| 1000 | $ 0.28 | |||
| Digi-Reel® | 1 | $ 0.60 | ||
| 10 | $ 0.54 | |||
| 100 | $ 0.36 | |||
| 500 | $ 0.31 | |||
| 1000 | $ 0.28 | |||
| Tape & Reel (TR) | 3000 | $ 0.24 | ||
| 6000 | $ 0.22 | |||
| 9000 | $ 0.20 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 0.62 | |
| 10 | $ 0.56 | |||
| 25 | $ 0.49 | |||
| 50 | $ 0.43 | |||
| 100 | $ 0.37 | |||
| 250 | $ 0.35 | |||
| 500 | $ 0.33 | |||
| 1000 | $ 0.30 | |||
Description
General part information
YQ3LAM10D Series
The YQ30NL10SDFH is a highly efficient Schottky Barrier Diode that is designed improving the tradeoff between low VFand low IR. While its low VFit achieves stable operation at high temperatures. Ideal for switching power supplies, freewheel diodes, and reverse polarity protection applications.
