BZT52C75K

Active

Taiwan Semiconductor Corporation

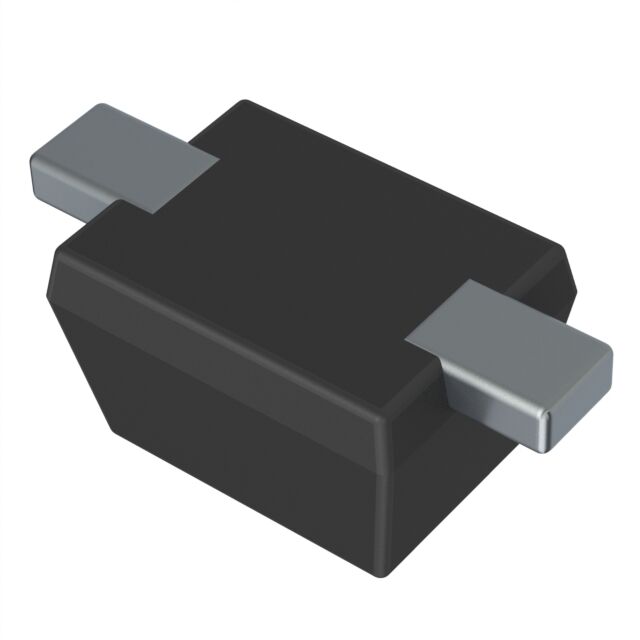

SOD-523F, 200MW, 5%, ZENER DIODE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Whisker - SOD-523F REV:A +7

BZT52C75K

Active

Taiwan Semiconductor Corporation

SOD-523F, 200MW, 5%, ZENER DIODE

Deep-Dive with AI

DocumentsDatasheet Whisker - SOD-523F REV:A +7

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BZT52C75K

Current - Reverse Leakage @ Vr	200 nA
Impedance (Max) (Zzt) [Max]	255 Ohms
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 °C
Package / Case	SC-79, SOD-523
Power - Max [Max]	200 mW
Supplier Device Package	SOD-523F
Tolerance	5 %
Voltage - Zener (Nom) (Vz)	75 V

BZT52C Series

...

Part	Impedance (Max) (Zzt) [Max]	Mounting Type	Voltage - Zener (Nom) (Vz)	Package / Case	Power - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Current - Reverse Leakage @ Vr	Supplier Device Package	Operating Temperature	Voltage - Forward (Vf) (Max) @ If
Taiwan Semiconductor Corporation BZT52C75K	255 Ohms	Surface Mount	75 V	SC-79 SOD-523	200 mW	150 °C	-65 °C	5 %	200 nA	SOD-523F
Taiwan Semiconductor Corporation BZT52C10K RKG	20 Ohms	Surface Mount	10 V	SC-79 SOD-523	200 mW	150 °C	-65 °C	5 %	100 nA	SOD-523F
Taiwan Semiconductor Corporation BZT52C20-G RHG	55 Ohms	Surface Mount	20 V	SOD-123	350 mW			5 %	100 nA	SOD-123	150 °C	900 mV
Taiwan Semiconductor Corporation BZT52C75K RKG	255 Ohms	Surface Mount	75 V	SC-79 SOD-523	200 mW	150 °C	-65 °C	5 %	200 nA	SOD-523F
Taiwan Semiconductor Corporation BZT52C4V3K	90 Ohms	Surface Mount	4.3 V	SC-79 SOD-523	200 mW	150 °C	-65 °C	5 %	5 µA	SOD-523F
Taiwan Semiconductor Corporation BZT52C7V5 RHG	15 Ohms	Surface Mount	7.5 V	SOD-123F	500 mW	150 °C	-65 °C	5 %	900 nA	SOD-123F		1 V
Taiwan Semiconductor Corporation BZT52C6V8 RHG	15 Ohms	Surface Mount	6.8 V	SOD-123F	500 mW	150 °C	-65 °C	5 %	1.8 µA	SOD-123F		1 V
Taiwan Semiconductor Corporation BZT52C16 RHG	40 Ohms	Surface Mount	16 V	SOD-123F	500 mW	150 °C	-65 °C	5 %	45 nA	SOD-123F		1 V
Taiwan Semiconductor Corporation BZT52C5V1S RRG	60 Ohms	Surface Mount	5.1 V	SC-90 SOD-323F	200 mW	175 ░C	-55 °C	5 %	1.8 µA	SOD-323F		1 V
Taiwan Semiconductor Corporation BZT52C5V1K RKG	60 Ohms	Surface Mount	5.1 V	SC-79 SOD-523	200 mW	150 °C	-65 °C	5 %	2 µA	SOD-523F

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 0.05

Description

General part information

BZT52C Series

Zener Diode 75 V 200 mW ±5% Surface Mount SOD-523F
