09305160441

Active

HARTING Technology Group

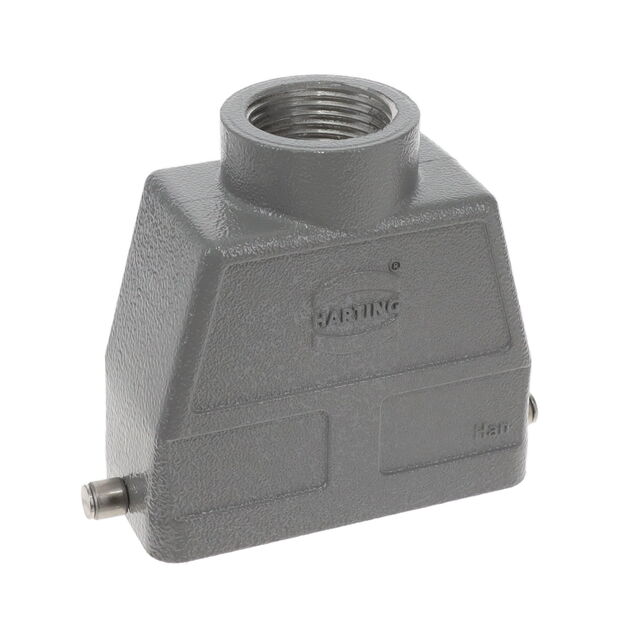

CONN HOOD TOP ENTRY SZ16B

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

09305160441

Active

HARTING Technology Group

CONN HOOD TOP ENTRY SZ16B

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09305160441

Connector Type	Hood
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	16 B
Size / Dimension [x]	3.681 "
Size / Dimension [x]	93.5 mm
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	76 mm
Size / Dimension [z]	2.992 in
Style	Top Entry
Thread Size	NPT-1

09305160 Series

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Housing Finish	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Housing Color	Size	Lock Location	Ingress Protection	Connector Type	Style	Thread Size	Features
HARTING Technology Group 09305160440	3.681 "	1.693 in	43 mm	93.5 mm	76 mm	2.992 in	Powder Coated	125 °C	-40 °C	Aluminum Die Cast	Gray	16 B	Locking Clip (1) on Base Bottom	IP65 IP66 IP67	Hood	Top Entry	NPT-3/4
HARTING Technology Group 09305160731	3.681 "	1.693 in	43 mm	93.5 mm	78.4 mm	3.087 "	Powder Coated	125 °C	-40 °C	Aluminum Die Cast	Gray	16 B	Locking Clip (2) on Hood	IP65 - Dust Tight Water Resistant	Hood	Top Entry	NPT-1	Cable to Cable
HARTING Technology Group 09305160540	3.681 "	1.693 in	43 mm	93.5 mm	76 mm	2.992 in	Powder Coated	125 °C	-40 °C	Aluminum Die Cast	Gray	16 B	Locking Clip (1) on Base Bottom	IP65 IP66 IP67	Hood	Side Entry	NPT-3/4
HARTING Technology Group 09305160520	3.681 "	1.693 in	43 mm	93.5 mm	76 mm	2.992 in	Powder Coated	125 °C	-40 °C	Aluminum Die Cast	Gray	16 B	Locking Clip (2) on Base Bottom	IP65 - Dust Tight Water Resistant	Hood	Side Entry	NPT-3/4
HARTING Technology Group 09305160441	3.681 "	1.693 in	43 mm	93.5 mm	76 mm	2.992 in	Powder Coated	125 °C	-40 °C	Aluminum Die Cast	Gray	16 B	Locking Clip (1) on Base Bottom	IP65 - Dust Tight Water Resistant	Hood	Top Entry	NPT-1
HARTING Technology Group 09305160421	3.681 "	1.693 in	43 mm	93.5 mm	76 mm	2.992 in	Powder Coated	125 °C	-40 °C	Aluminum Die Cast	Gray	16 B	Locking Clip (2) on Base Bottom	IP65 - Dust Tight Water Resistant	Hood	Top Entry	NPT-1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 154.94
		10	$ 118.42
		25	$ 107.80
		50	$ 100.89
		100	$ 94.82

Description

General part information

09305160 Series

Hood Connector Top Entry NPT-1 16B IP65 - Dust Tight, Water Resistant
