SS16HE

NRND

ON Semiconductor

1.0 A, 60 V SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS

Search across all available documentation for this part.

NRND

ON Semiconductor

1.0 A, 60 V SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS

Technical Specifications

Parameters and characteristics for this part

Specification	SS16HE

Capacitance @ Vr, F	43 pF
Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	50 çA
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	2-SMD, Flat Leads
Qualification	AEC-Q101
Reverse Recovery Time (trr)	8.3 ns
Speed	200 mA, 500 ns

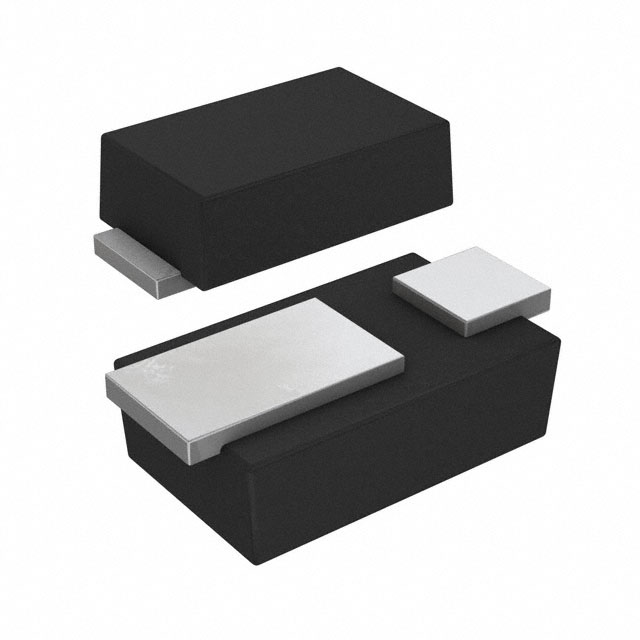

Supplier Device Package	SOD-323HE
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	60 V

1.0 A, 60 V Surface Mount Schottky Barrier Rectifiers

Part	Speed	Mounting Type	Current - Reverse Leakage @ Vr	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - DC Reverse (Vr) (Max) [Max]	Package / Case	Current - Average Rectified (Io)	Qualification	Grade	Technology	Capacitance @ Vr, F	Supplier Device Package	Reverse Recovery Time (trr)	Voltage - Forward (Vf) (Max) @ If
ON Semiconductor SS16HE	200 mA 500 ns	Surface Mount	50 çA	150 °C	-55 °C	60 V	2-SMD Flat Leads	1 A	AEC-Q101	Automotive	Schottky	43 pF	SOD-323HE	8.3 ns
ON Semiconductor SS16FA	200 mA 500 ns	Surface Mount	400 µA	150 °C	-55 °C	60 V	SOD-123W	1 A	AEC-Q101	Automotive	Schottky	55 pF	SOD-123FA		700 mV
ON Semiconductor SS16FP	200 mA 500 ns	Surface Mount	400 µA	150 °C	-55 °C	60 V	SOD-123H	1 A	AEC-Q101	Automotive	Schottky	80 pF	SOD-123HE		700 mV
