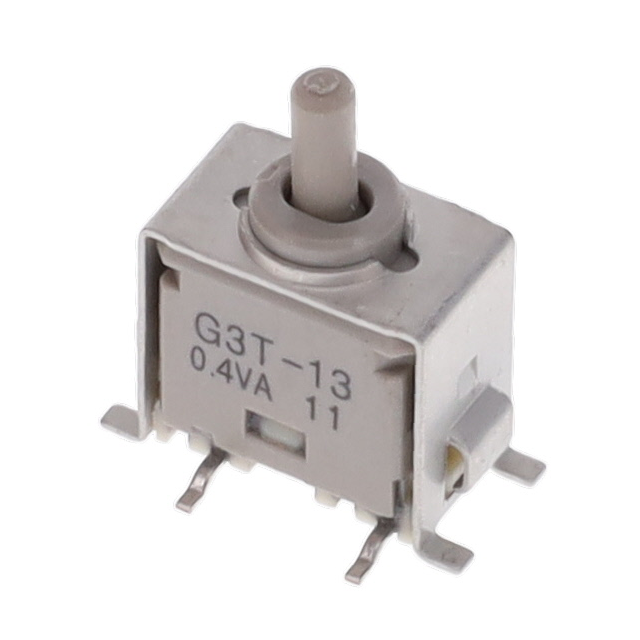

G3T13AB

Active

NKK Switches

PROCESS SEALED ULTRA-MINIATURE SMT TOGGLE

Search across all available documentation for this part.

Active

NKK Switches

PROCESS SEALED ULTRA-MINIATURE SMT TOGGLE

Technical Specifications

Parameters and characteristics for this part

Part	Actuator Length [x]	Electrical Life	Current Rating (Amps)	Illumination	Actuator Type	Actuator Material	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Features	Mounting Type	Voltage Rating - DC	Voltage Rating - AC	Bushing Thread	Switch Function	Circuit
NKK Switches G3T13AB	3.81 mm	50000 Cycles	0.4 VA	Non-Illuminated	Standard Round	Polyphenylene Sulfide (PPS)	-30 ░C	85 °C	Gull Wing	Process Sealed	Surface Mount	28 V	28 V	Unthreaded	On-Off-On	SPDT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPDT Surface Mount
