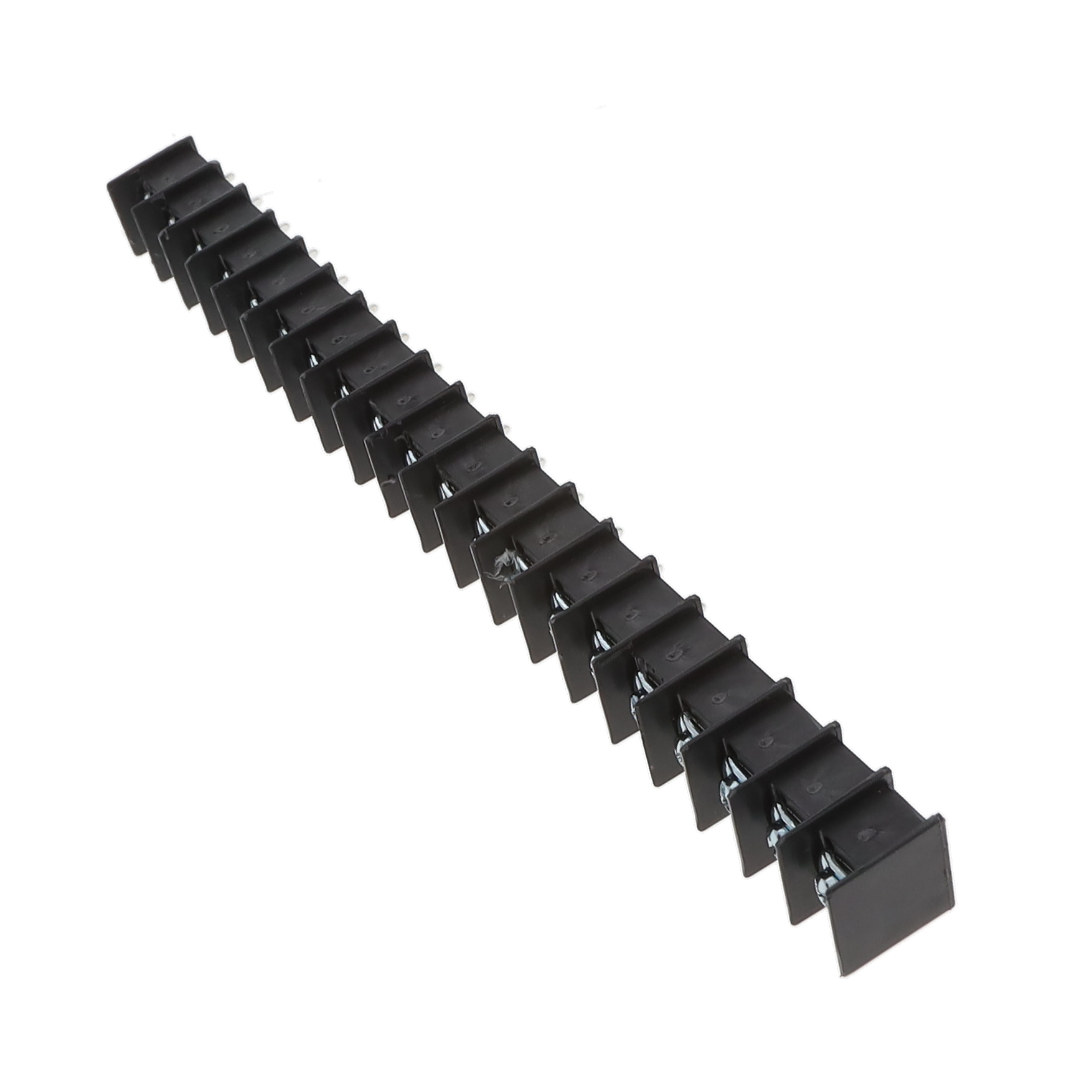

431101-20-0

Active

Curtis Industries

CONN BARRIER STRP 20CIRC 0.438"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTerminal Blocks Catalog Datasheet

431101-20-0

Active

Curtis Industries

CONN BARRIER STRP 20CIRC 0.438"

Deep-Dive with AI

DocumentsTerminal Blocks Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	431101-20-0

Barrier Type	2 Wall (Dual)
Bottom Termination	PC Pin
Current Rating (Amps)	20 A
Material - Insulation	Polypropylene (PP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Circuits	20
Number of Rows	1
Number of Wire Entries	20
Operating Temperature	105 C
Pitch [x]	11.12 mm
Pitch [x]	0.438 in
Terminal Block Type	Barrier Block
Top Termination	Screws
Voltage Rating	600 V
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	12 AWG

431101 Series

Part	Operating Temperature	Wire Gauge [Min]	Wire Gauge [Max]	Top Termination	Pitch [x]	Pitch [x]	Material - Insulation	Terminal Block Type	Bottom Termination	Number of Circuits	Number of Wire Entries	Mounting Type	Voltage Rating	Number of Rows	Material Flammability Rating	Barrier Type	Current Rating (Amps)	Number of Wire Entries [custom]	Number of Circuits [custom]
Curtis Industries 431101-14-0	105 C	12 AWG	22 AWG	Screws	11.12 mm	0.438 in	Polypropylene (PP)	Barrier Block	PC Pin	14	14	Through Hole	600 V	1	UL94 V-0	2 Wall (Dual)	20 A
Curtis Industries 431101-15-0	105 C	12 AWG	22 AWG	Screws	11.12 mm	0.438 in	Polypropylene (PP)	Barrier Block	PC Pin	15	15	Through Hole	600 V	1	UL94 V-0	2 Wall (Dual)	20 A
Curtis Industries 431101-22-0	105 C	12 AWG	22 AWG	Screws	11.12 mm	0.438 in	Polypropylene (PP)	Barrier Block	PC Pin	22		Through Hole	600 V	1	UL94 V-0	2 Wall (Dual)	20 A	22
Curtis Industries 431101-11-0	105 C	12 AWG	22 AWG	Screws	11.12 mm	0.438 in	Polypropylene (PP)	Barrier Block	PC Pin	11	11	Through Hole	600 V	1	UL94 V-0	2 Wall (Dual)	20 A
Curtis Industries 431101-08-0	105 C	12 AWG	22 AWG	Screws	11.12 mm	0.438 in	Polypropylene (PP)	Barrier Block	PC Pin		8	Through Hole	600 V	1	UL94 V-0	2 Wall (Dual)	20 A		8
Curtis Industries 431101-01-0	105 C	12 AWG	22 AWG	Screws			Polypropylene (PP)	Barrier Block	PC Pin	1		Through Hole	600 V	1	UL94 V-0	2 Wall (Dual)	20 A	1
Curtis Industries 431101-17-0	105 C	12 AWG	22 AWG	Screws	11.12 mm	0.438 in	Polypropylene (PP)	Barrier Block	PC Pin	17	17	Through Hole	600 V	1	UL94 V-0	2 Wall (Dual)	20 A
Curtis Industries 431101-20-0	105 C	12 AWG	22 AWG	Screws	11.12 mm	0.438 in	Polypropylene (PP)	Barrier Block	PC Pin	20	20	Through Hole	600 V	1	UL94 V-0	2 Wall (Dual)	20 A
Curtis Industries 431101-03-0	105 C	12 AWG	22 AWG	Screws	11.12 mm	0.438 in	Polypropylene (PP)	Barrier Block	PC Pin	3	3	Through Hole	600 V	1	UL94 V-0	2 Wall (Dual)	20 A
Curtis Industries 431101-09-0	105 C	12 AWG	22 AWG	Screws	11.12 mm	0.438 in	Polypropylene (PP)	Barrier Block	PC Pin		9	Through Hole	600 V	1	UL94 V-0	2 Wall (Dual)	20 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.82
		10	$ 10.40
		25	$ 9.81
		50	$ 9.34
		100	$ 9.16
		250	$ 7.98
		500	$ 7.68
		1000	$ 7.39

Description

General part information

431101 Series

20 Circuit 0.438" (11.12mm) Barrier Block Connector Screws
