24-6337-7402

Active

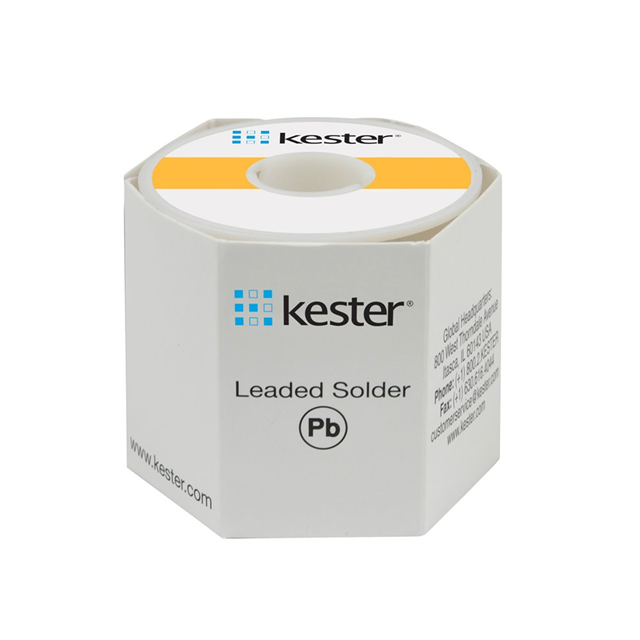

Kester Solder

SOLDER FLUX-CORED/282 63/37 .031

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAlloy Temperature Chart Datasheet

24-6337-7402

Active

Kester Solder

SOLDER FLUX-CORED/282 63/37 .031

Deep-Dive with AI

DocumentsAlloy Temperature Chart Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	24-6337-7402

Flux Type	Rosin Mildly Activated (RMA)
Form	Spool, 1 lb (454 g)
Melting Point [custom]	361 °F
Melting Point [custom]	183 °C
Process	Leaded
Type	Wire Solder
Wire Gauge	20 AWG, 22 SWG

24-6337 Series

Part	Flux Type	Form	Wire Gauge	Process	Type	Melting Point [custom]	Melting Point [custom]	Wire Gauge	Shelf Life	Shelf Life Start	Weight	Weight	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Diameter [diameter]	Diameter [diameter]	Diameter [diameter]
Kester Solder 24-6337-7402	Rosin Mildly Activated (RMA)	Spool 1 lb (454 g)	20 AWG 22 SWG	Leaded	Wire Solder	361 °F	183 °C
Kester Solder 24-6337-0010	Rosin Activated (RA)	Spool 1 lb (454 g)		Leaded	Wire Solder	361 °F	183 °C	24 AWG 25 mmý	36 Months	Date of Manufacture	453.59 g	1 lbs	10 °C	40 °C	0.51 mm	0.02 in
Kester Solder 24-6337-8810	No-Clean	Spool 1 lb (454 g)		Leaded	Wire Solder	361 °F	183 °C	30 AWG 33 SWG					10 °C	40 °C	0.01 in		0.25 mm
Kester Solder 24-6337-8842	No-Clean	Spool 1 lb (454 g)	22 AWG 23 SWG	Leaded	Wire Solder	361 °F	183 °C						10 °C	40 °C
Kester Solder 24-6337-8804	No-Clean	Spool 1 lb (454 g)		Leaded	Wire Solder	361 °F	183 °C	13.5 AWG 16 SWG					10 °C	40 °C	1.57 mm	0.062 in
Kester Solder 24-6337-9716	Rosin Mildly Activated (RMA)	Spool 1 lb (454 g)		Leaded	Wire Solder	361 °F	183 °C	18 AWG 19 SWG	36 Months	Date of Manufacture			10 °C	40 °C	1.02 mm	0.04 in
Kester Solder 24-6337-8802	No-Clean	Spool 1 lb (454 g)	20 AWG 22 SWG	Leaded	Wire Solder	361 °F	183 °C		36 Months	Date of Manufacture	453.59 g	1 lbs	10 °C	40 °C
Kester Solder 24-6337-9700	Rosin Mildly Activated (RMA)	Spool 1 lb (454 g)		Leaded	Wire Solder	361 °F	183 °C	24 AWG 25 mmý	36 Months	Date of Manufacture	453.59 g	1 lbs	10 °C	40 °C	0.51 mm	0.02 in
Kester Solder 24-6337-9717	Rosin Mildly Activated (RMA)	Spool 1 lb (454 g)	22 AWG 23 SWG	Leaded	Wire Solder	361 °F	183 °C		36 Months	Date of Manufacture			10 °C	40 °C
Kester Solder 24-6337-0657	Water Soluble	Spool 1 lb (454 g)	20 AWG 22 SWG	Leaded	Wire Solder	361 °F	183 °C						10 °C	40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 138.34
		5	$ 119.06
		10	$ 111.57
		25	$ 102.36
		50	$ 95.88
		100	$ 89.78

Description

General part information

24-6337 Series

Leaded Rosin Mildly Activated (RMA) Wire Solder Sn63Pb37 (63/37) 20 AWG, 22 SWG Spool, 1 lb (454 g)

Documents

Technical documentation and resources
