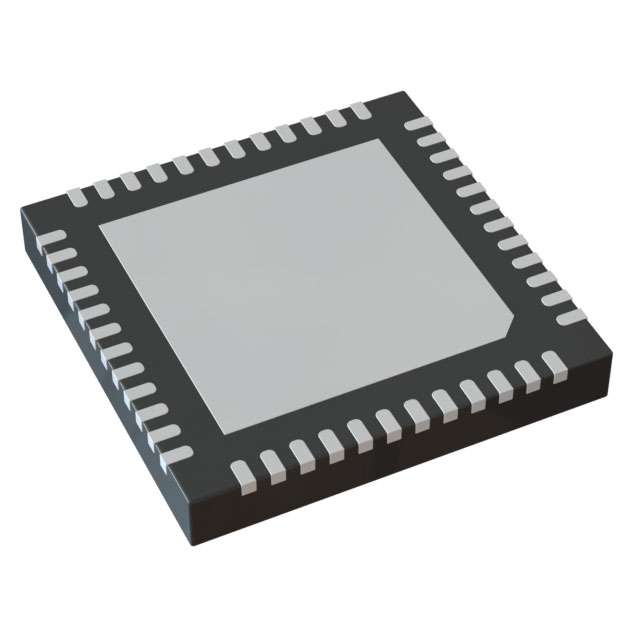

5P49V6968A000NDGI

Active

Renesas Electronics Corporation

IC CLOCK GENERATOR 48VFQFPN

Search across all available documentation for this part.

Active

Renesas Electronics Corporation

IC CLOCK GENERATOR 48VFQFPN

Technical Specifications

Parameters and characteristics for this part

Specification	5P49V6968A000NDGI

Differential - Input:Output [custom]	True
Differential - Input:Output [custom]	True
Divider/Multiplier	Yes/No
Frequency - Max [Max]	350 MHz
Input	LVDS, LVCMOS, HCSL, LVPECL, Crystal
Mounting Type	Surface Mount
Number of Circuits	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	LVCMOS, HCSL, LVPECL, LVDS
Package / Case	48-VFQFN Exposed Pad
PLL	True
Ratio - Input:Output [custom]	2:4
Supplier Device Package	48-VFQFPN (6x6)
Type	Clock Generator
Voltage - Supply [Max]	3.465 V
Voltage - Supply [Min]	1.71 V

Part	Type	Supplied Contents	Function	Contents	Utilized IC / Part	Number of Circuits	Frequency - Max [Max]	Output	Package / Case	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Divider/Multiplier	Supplier Device Package	Input	Operating Temperature [Max]	Operating Temperature [Min]	Ratio - Input:Output [custom]
Renesas Electronics Corporation 5P49V6968-EVK	Timing	Board(s)	Clock Generator	Board(s)	5P49V6968
Renesas Electronics Corporation 5P49V6968A000NDGI8	Clock Generator					1	350 MHz	HCSL LVCMOS LVDS LVPECL	48-VFQFN Exposed Pad	Surface Mount	1.71 V 2.375 V 3.135 V	1.89 V 2.625 V 3.465 V	Yes/No	48-VFQFPN (6x6)	Crystal HCSL LVCMOS LVDS LVPECL	85 °C	-40 °C	4:2
Renesas Electronics Corporation 5P49V6968A000NDGI	Clock Generator					1	350 MHz	HCSL LVCMOS LVDS LVPECL	48-VFQFN Exposed Pad	Surface Mount	1.71 V	3.465 V	Yes/No	48-VFQFPN (6x6)	Crystal HCSL LVCMOS LVDS LVPECL	85 °C	-40 °C	2:4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 4.75
