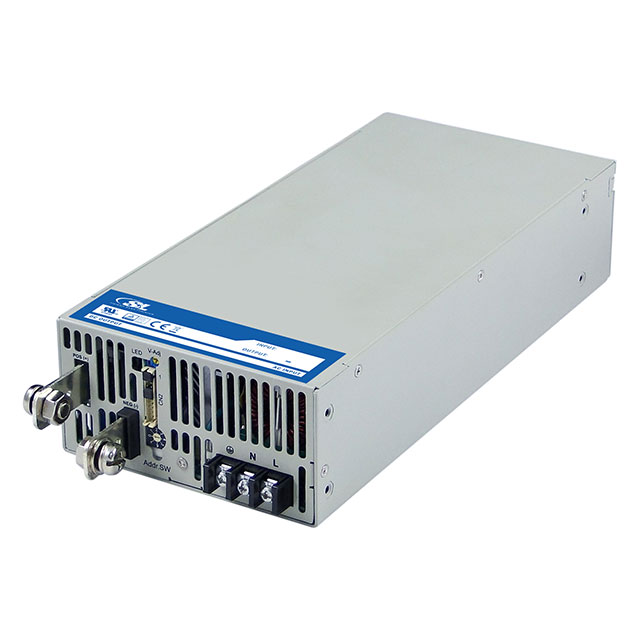

TF1500A12K

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 12V 1500W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TF1500A12K

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 12V 1500W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TF1500A12K

Applications	ITE (Commercial)
Approval Agency	cURus, CE, TUV
Current - Output 1	125 A
Efficiency	89 %
Features	Remote On/Off, PFC, Load Sharing, DC Input Capable, Remote Sense, Standby Output, Adjustable Output, I2C Interface
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	1500 W
Size / Dimension [x]	11.02 in
Size / Dimension [x]	279.9 mm
Size / Dimension [y]	5 "
Size / Dimension [y]	127 mm
Size / Dimension [z]	64 mm
Size / Dimension [z]	2.52 "
Type	Enclosed
Voltage - Input [Max]	240 VAC, 370 VDC
Voltage - Input [Min]	100 VAC, 127 VDC
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

TF1500 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Isolation	Efficiency	Mounting Type	Number of Outputs	Voltage - Input [Max]	Voltage - Input [Min]	Approval Agency	Current - Output 1	Type	Applications	Voltage - Output 1	Features	Power (Watts)
SL POWER / Advanced Energy TF1500A48K	60 °C	-25 °C	64 mm	11.02 in	2.52 "	5 "	279.9 mm	127 mm	3000 V	92 %	Chassis Mount	1	240 VAC 370 VDC	100 VAC 127 VDC	CE cURus TUV	31.37 A	Enclosed	ITE (Commercial)	48 V	Adjustable Output DC Input Capable I2C Interface Load Sharing PFC Remote On/Off Remote Sense Standby Output	1506 W
SL POWER / Advanced Energy TF1500A60K	60 °C	-25 °C	64 mm	11.02 in	2.52 "	5 "	279.9 mm	127 mm	3000 V	93 %	Chassis Mount	1	240 VAC 370 VDC	100 VAC 127 VDC	CE cURus TUV	25 A	Enclosed	ITE (Commercial)	60 V	Adjustable Output DC Input Capable I2C Interface Load Sharing PFC Remote On/Off Remote Sense Standby Output	1500 W
SL POWER / Advanced Energy TF1500A12K	60 °C	-25 °C	64 mm	11.02 in	2.52 "	5 "	279.9 mm	127 mm	3000 V	89 %	Chassis Mount	1	240 VAC 370 VDC	100 VAC 127 VDC	CE cURus TUV	125 A	Enclosed	ITE (Commercial)	12 V	Adjustable Output DC Input Capable I2C Interface Load Sharing PFC Remote On/Off Remote Sense Standby Output	1500 W
SL POWER / Advanced Energy TF1500A24K	60 °C	-25 °C	64 mm	11.02 in	2.52 "	5 "	279.9 mm	127 mm	3000 V	92 %	Chassis Mount	1	240 VAC 370 VDC	100 VAC 127 VDC	CE cURus TUV	62.5 A	Enclosed	ITE (Commercial)	24 V	Adjustable Output DC Input Capable I2C Interface Load Sharing PFC Remote On/Off Remote Sense Standby Output	1500 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	24	$ 608.63

Description

General part information

TF1500 Series

Enclosed AC DC Converters 1 Output 12V 100 ~ 240 VAC, 127 ~ 370 VDC Input

Documents

Technical documentation and resources
