Technical Specifications
Parameters and characteristics for this part
| Specification | L1IZ-0850000000000 |
|---|---|
| Current - DC Forward (If) (Max) | 1 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -30 °C |
| Orientation | Top View |
| Package / Case | 2-SMD, No Lead |
| Radiant Intensity (Ie) Min @ If [Min] | 250 mW/sr |
| Type | Infrared (IR) |
| Viewing Angle | 150 ° |
| Voltage - Forward (Vf) (Typ) | 3.2 V |
| Wavelength | 850 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.06 | |
| 10 | $ 2.04 | |||
| 100 | $ 1.51 | |||
| 500 | $ 1.30 | |||
| 1000 | $ 1.24 | |||
| Digi-Reel® | 1 | $ 3.06 | ||
| 10 | $ 2.04 | |||
| 100 | $ 1.51 | |||
| 500 | $ 1.30 | |||
| 1000 | $ 1.24 | |||
| Tape & Reel (TR) | 2000 | $ 1.19 | ||
| 4000 | $ 1.14 | |||
| 6000 | $ 1.12 | |||
Description
General part information

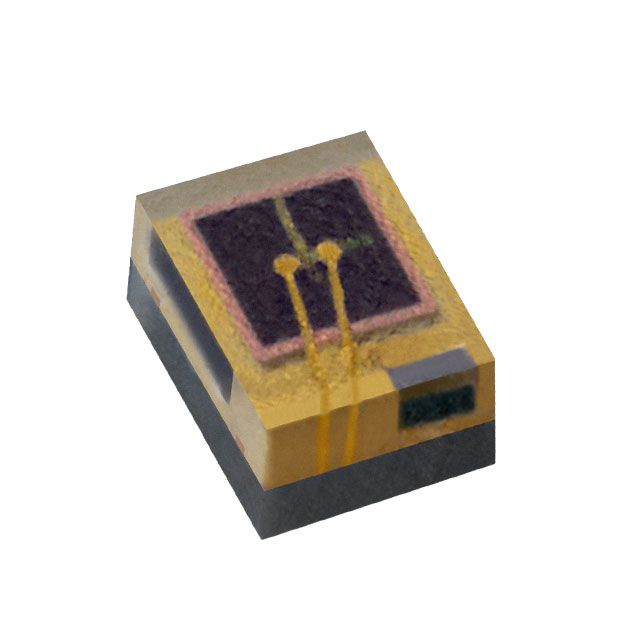

L1IZ Series
Infrared (IR) Emitter 850nm 3.2V 1A 250mW/sr @ 1A (Typ) 150° 2-SMD, No Lead
