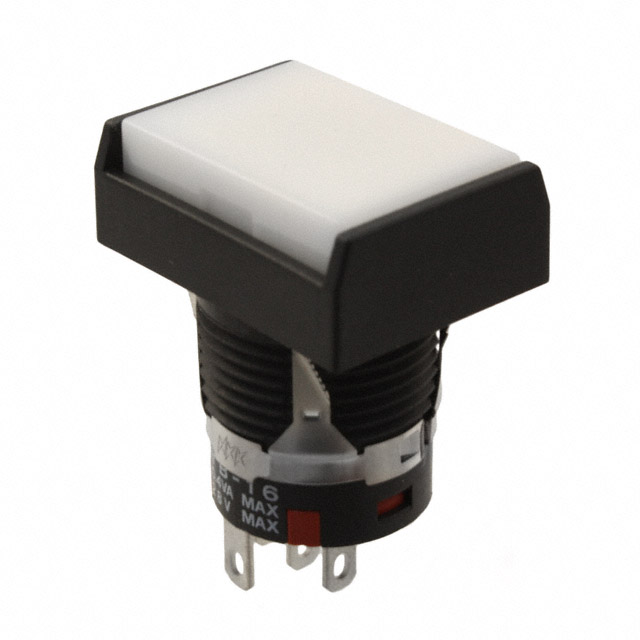

YB16NKG01-BB

Active

NKK Switches

SWITCH PUSH SPDT 0.4VA 28V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

YB16NKG01-BB

Active

NKK Switches

SWITCH PUSH SPDT 0.4VA 28V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	YB16NKG01-BB

Actuator Marking	No Marking
Actuator Type	Rectangular, Button
Circuit	SPDT
Color - Actuator/Cap	White
Current Rating (Amps)	0.4 VA
Electrical Life	100000 Cycles
Features	Tactile Feedback
Mechanical Life	200000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-On
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

YB16NK Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Voltage Rating - DC	Actuator Marking	Actuator Type	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Electrical Life	Current Rating (Amps)	Mounting Type	Type	Mechanical Life	Color - Actuator/Cap	Switch Function	Termination Style	Termination Style	Termination Style	Features	Illumination Voltage (Nominal)	Illumination Type, Color
NKK Switches YB16NKG01-BB	70 °C	-25 °C	SPDT	28 V	No Marking	Rectangular Button	16 mm	28 V	100000 Cycles	0.4 VA	Panel Mount Snap-In	Standard	200000 Cycles	White	On-On	0.11 in	Quick Connect Solder	2.8 mm	Tactile Feedback
NKK Switches YB16NKW01-BB	70 °C	-25 °C	SPDT	30 V	No Marking	Rectangular Button	16 mm	125 V	100000 Cycles	3 A	Panel Mount Snap-In	Standard	200000 Cycles	White	On-On		Solder Lug		Tactile Feedback
NKK Switches YB16NKW01-CB	70 °C	-25 °C	SPDT	30 V	No Marking	Rectangular Button	16 mm	125 V	100000 Cycles	3 A	Panel Mount Snap-In	Standard	200000 Cycles	Red	On-On	0.11 in	Quick Connect Solder	2.8 mm	Tactile Feedback
NKK Switches YB16NKW01-FB	70 °C	-25 °C	SPDT	30 V	No Marking	Rectangular Button	16 mm	125 V	100000 Cycles	3 A	Panel Mount Snap-In	Standard	200000 Cycles	Green	On-On	0.11 in	Quick Connect Solder	2.8 mm	Tactile Feedback
NKK Switches YB16NKW01	70 °C	-25 °C	SPDT	30 V	No Marking	Plunger for Cap	16 mm	125 V	100000 Cycles	3 A	Panel Mount Snap-In	Standard	200000 Cycles		On-On	0.11 in	Quick Connect Solder	2.8 mm	Tactile Feedback
NKK Switches YB16NKW01-6F-JB	50 °C	-25 °C	SPDT	30 V	No Marking	Rectangular Button	16 mm	125 V	100000 Cycles	3 A	Panel Mount Snap-In	Illuminated Standard	200000 Cycles	Clear	On-On	0.11 in	Quick Connect Solder	2.8 mm	Tactile Feedback	3.3 VDC	Green LED
NKK Switches YB16NKW01-1F12-JB	50 °C	-25 °C	SPDT	30 V	No Marking	Rectangular Button	16 mm	125 V	100000 Cycles	3 A	Panel Mount Snap-In	Illuminated Standard	200000 Cycles	Clear	On-On	0.11 in	Quick Connect Solder	2.8 mm	Tactile Feedback	12 VDC	Green LED

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 15.27
Newark	Each	1	$ 29.06
		5	$ 27.61
		10	$ 25.59
		25	$ 23.34
		50	$ 20.20
		100	$ 18.85
		250	$ 17.17

Description

General part information

YB16NK Series

Pushbutton Switch SPDT Standard Panel Mount, Snap-In
