BC-AGP-282813

Active

Boxco

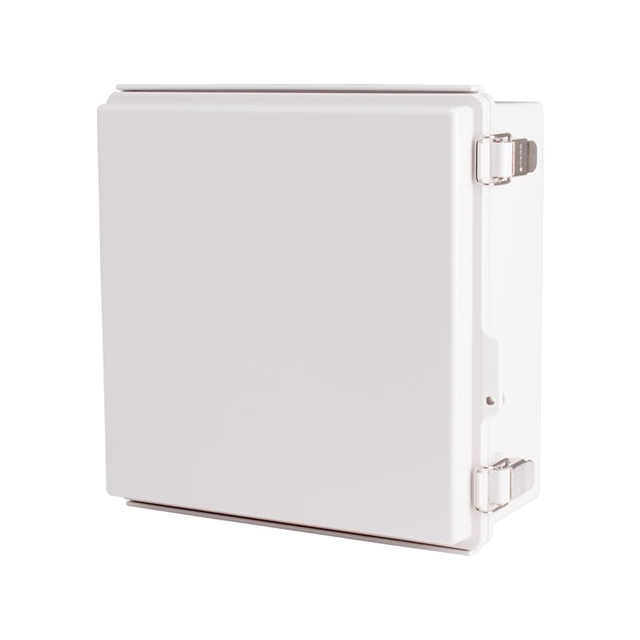

BOX ABS GRAY 11.024"L X 11.024"W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BC-AGP-282813

Active

Boxco

BOX ABS GRAY 11.024"L X 11.024"W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BC-AGP-282813

Area (L x W) [custom]	122 in˛
Area (L x W) [custom]	784 cm˛
Color	Light Gray
Container Type	Box
Design	Stainless Steel Latch, Hinged Door
Features	Latches, Hinged, Lockable, Sealing Gasket
Height [z]	5.118 in
Height [z]	130 mm
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	NEMA 4X, NEMA 6, IP66, IP67
Size / Dimension [x]	11.024 in
Size / Dimension [x]	280 mm
Size / Dimension [y]	11.024 "
Size / Dimension [y]	280 mm

BC-AG Series

Part	Ratings	Container Type	Design	Color	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Area (L x W)	Area (L x W)	Material	Height [z]	Height [z]	Material Flammability Rating	Thickness [custom]	Thickness [custom]	Area (L x W) [custom]	Area (L x W) [custom]	Height [diameter]	Height [diameter]	Area (L x W) [x]	Area (L x W) [x]
Boxco BC-AGS-081605	IP66 IP67 NEMA 4X NEMA 6 UL 508A	Box	Lift-Off Screw Cover	Light Gray	Sealing Gasket Wall Mount	80 mm	160 mm	3.15 in	6.299 "	128 cm˛	19.8 in˛	Plastic ABS	2.165 in	55 mm	UL94 HB
Boxco BC-AGP-506025	IP66 IP67 NEMA 4X NEMA 6	Box	Hinged Door Stainless Steel Latch	Light Gray	Hinged Latches Lockable Mounting Brackets Sealing Gasket	530 mm	630 mm	20.866 in	24.803 "			Plastic ABS	10.039 in	255 mm	UL94 HB	4.5 mm	0.177 in	518 in²	3339 cm²
Boxco BC-ABB-6PT	IP66 IP67 NEMA 4X NEMA 6	Junction Box	Lift-Off Screw Cover	Grayish Blue	Sealing Gasket	75 mm	91 mm	2.953 in	3.583 in	68 cm˛	10.6 in˛	Plastic ABS			UL94 HB					1.693 in	43 mm
Boxco BC-AGP-353518	IP66 IP67 NEMA 4X NEMA 6	Box	Hinged Door Stainless Steel Latch	Light Gray	Hinged Latches Lockable Sealing Gasket	350 mm	350 mm	13.78 in	13.78 in	1225 cm²	190 in²	Plastic ABS	7.087 in	180 mm	UL94 HB
Boxco BC-AGS-151507	IP66 IP67 NEMA 4X NEMA 6 UL 508A	Box	Lift-Off Screw Cover	Light Gray	Sealing Gasket Wall Mount	150 mm	150 mm	5.906 "	5.906 in	225 cm²	34.9 in˛	Plastic ABS	2.953 in	75 mm	UL94 HB
Boxco BC-AGG-6P	IP66 IP67 NEMA 4X NEMA 6	Junction Box	Lift-Off Screw Cover	Light Gray	Sealing Gasket	75 mm	91 mm	2.953 in	3.583 in	68 cm˛	10.6 in˛	Plastic ABS			UL94 HB					1.693 in	43 mm
Boxco BC-AGS-141709	IP66 IP67 NEMA 4X NEMA 6 UL 508A	Box	Lift-Off Screw Cover	Light Gray	Sealing Gasket Wall Mount					238 cm˛	36.9 in˛	Plastic ABS	3.74 in	95 mm	UL94 HB
Boxco BC-AGS-385618	IP66 IP67 NEMA 4X NEMA 6 UL 508A	Box	Lift-Off Screw Cover	Light Gray	Sealing Gasket Wall Mount	380 mm	560 mm	14.961 in	22.047 in			Plastic ABS	7.087 in	180 mm	UL94 HB							330 in˛	2128 cm˛
Boxco BC-AGP-507018	IP66 IP67 NEMA 4X NEMA 6	Box	Hinged Door Stainless Steel Latch	Light Gray	Hinged Latches Lockable Mounting Brackets Sealing Gasket	530 mm	730 mm	20.866 in	28.74 in			Plastic ABS	7.283 in	185 mm	UL94 HB	4.5 mm	0.177 in
Boxco BC-AGP-282813	IP66 IP67 NEMA 4X NEMA 6	Box	Hinged Door Stainless Steel Latch	Light Gray	Hinged Latches Lockable Sealing Gasket	280 mm	280 mm	11.024 "	11.024 in			Plastic ABS	5.118 in	130 mm	UL94 HB			122 in˛	784 cm˛

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 46.60

Description

General part information

BC-AG Series

Box Plastic, ABS Light Gray Hinged Door, Stainless Steel Latch 11.024" L x 11.024" W (280.00mm x 280.00mm) X 5.118" (130.00mm)

Documents

Technical documentation and resources
