19397160448

Active

HARTING Technology Group

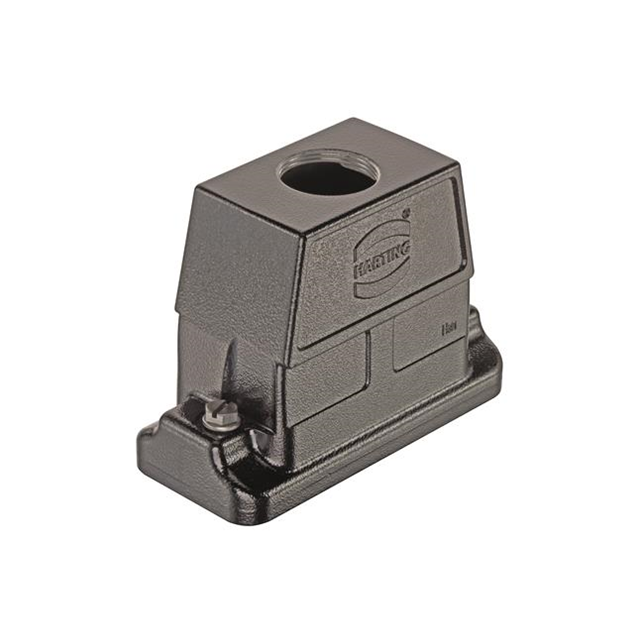

HAN 16 HP DIRECT M HOOD, TOP ENTRY, M40

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN 16 HP DIRECT M HOOD, TOP ENTRY, M40

Technical Specifications

Parameters and characteristics for this part

Specification	19397160448

Connector Type	Hood
Housing Color	Black
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP69K, IP66, IP68, Dust Tight, Water Resistant, Waterproof
Lock Location	Screw Locks on Hood
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	16 B
Size / Dimension [x]	127 mm
Size / Dimension [x]	5 in
Size / Dimension [y]	57 mm
Size / Dimension [y]	2.244 "
Size / Dimension [z]	94 mm
Size / Dimension [z]	3.701 in
Style	Top Entry

Part	Style	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size	Housing Color	Housing Finish	Size	Housing Material	Lock Location	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Connector Type
HARTING Technology Group 19397160547	Side Entry	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	125 °C	-40 °C	M32	Black	Powder Coated	16 B	Aluminum Die Cast	Screw Locks on Hood	95 mm	3.74 in	57 mm	127 mm	5 in	2.244 "	Hood
HARTING Technology Group 19397160445	Top Entry	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	125 °C	-40 °C	M20	Black	Powder Coated	16 B	Aluminum Die Cast	Screw Locks on Hood	94 mm	3.701 in	57 mm	127 mm	5 in	2.244 "	Hood
HARTING Technology Group 19397160546	Side Entry	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	125 °C	-40 °C	M25	Black	Powder Coated	16 B	Aluminum Die Cast	Screw Locks on Hood	95 mm	3.74 in	57 mm	127 mm	5 in	2.244 "	Hood
HARTING Technology Group 19397160448	Top Entry	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	125 °C	-40 °C		Black	Powder Coated	16 B	Aluminum Die Cast	Screw Locks on Hood	94 mm	3.701 in	57 mm	127 mm	5 in	2.244 "	Hood

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Top Entry M40 16B IP66/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
