LY G6SP-CADB-36-1-Z

Active

ams-OSRAM USA INC.

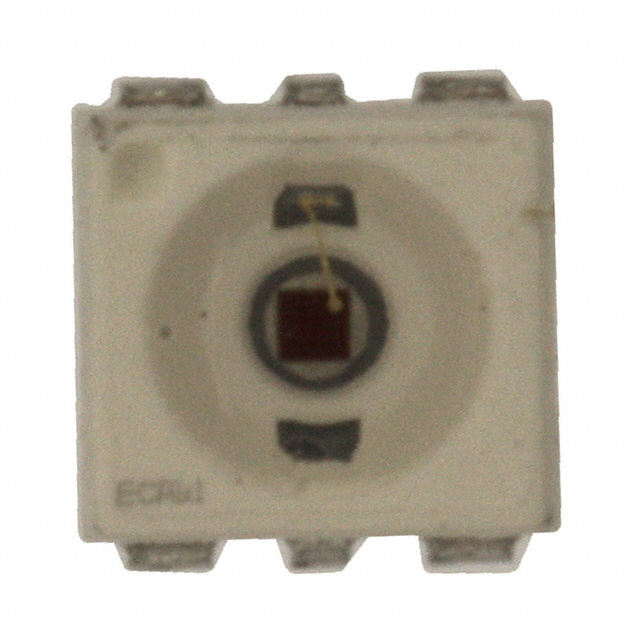

LED TOPLED YLW 589NM 6PLCC

Search across all available documentation for this part.

Active

ams-OSRAM USA INC.

LED TOPLED YLW 589NM 6PLCC

Technical Specifications

Parameters and characteristics for this part

Specification	LY G6SP-CADB-36-1-Z

Color	Yellow
Current - Max [Max]	200 mA
Current - Test	140 mA
Height - Seated (Max) [Max] [z]	2.1 mm
Height - Seated (Max) [Max] [z]	0.083 "
Lumens/Watt @ Current - Test	44 lm/W
Luminous Flux @ Current/Temperature	14 lm
Luminous Flux @ Current/Temperature [Max]	19 lm
Luminous Flux @ Current/Temperature [Min]	10 lm
Mounting Type	Surface Mount
Package / Case	6-SMD, J-Lead
Size / Dimension [x]	3.3 mm
Size / Dimension [x]	0.13 in
Size / Dimension [y]	3 mm
Size / Dimension [y]	0.118 in
Supplier Device Package	6-PLCC
Thermal Resistance of Package [custom]	50 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	2.25 V
Wavelength	589 nm
Wavelength [Max]	595 nm
Wavelength [Min]	583 nm

Part	Package / Case	Supplier Device Package	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Current - Max [Max]	Color	Viewing Angle	Wavelength [Min]	Wavelength	Wavelength [Max]	Current - Test	Voltage - Forward (Vf) (Typ)	Mounting Type	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature [Max]	Lumens/Watt @ Current - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Thermal Resistance of Package [custom]
ams-OSRAM USA INC. LY G6SP-CBEB-36-3B5A-140-R18-Z	6-PLCC	6-PLCC	3.3 mm	0.13 in	3 mm	0.118 in	200 mA	Yellow	120 °	583 nm	589 nm	595 nm	140 mA	2.25 V	Surface Mount	21 lm	12 lm	30 lm	67 lm/W	2.1 mm	0.083 "
ams-OSRAM USA INC. LY G6SP-CADB-36-1-Z	6-SMD J-Lead	6-PLCC	3.3 mm	0.13 in	3 mm	0.118 in	200 mA	Yellow	120 °	583 nm	589 nm	595 nm	140 mA	2.25 V	Surface Mount	14 lm	10 lm	19 lm	44 lm/W	2.1 mm	0.083 "	50 °C/W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting Color Advanced Power TOPLED® Yellow 589nm (583nm ~ 595nm) 6-SMD, J-Lead
