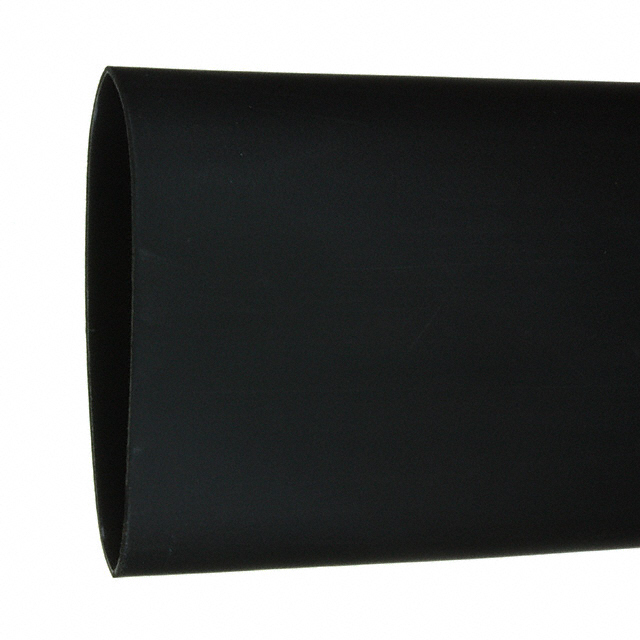

Q5-3X-1 1/2-01-QB48IN-5

Active

Qualtek

HEATSHRINK 1.575" X 4' BLK 1=1PC

Search across all available documentation for this part.

Active

Qualtek

HEATSHRINK 1.575" X 4' BLK 1=1PC

Technical Specifications

Parameters and characteristics for this part

Specification	Q5-3X-1 1/2-01-QB48IN-5

Color	Black
Features	Adhesive Lined, Flame Retardant
Inner Diameter - Recovered	13 mm
Inner Diameter - Recovered	0.512 in
Inner Diameter - Supplied [diameter]	1.575 "
Inner Diameter - Supplied [diameter]	40.01 mm
Length [x]	1.22 m
Length [x]	4 ft
Material	Polyolefin (PO)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.094 "
Recovered Wall Thickness	2.4 mm
Shelf Life	60 Months
Shrink Temperature	80 °C
Shrinkage Ratio [Max]	3
Shrinkage Ratio [Min]	1
Storage/Refrigeration Temperature [Max]	40 °C
Storage/Refrigeration Temperature [Min]	-10 °C, -50 °F
Type	Tubing, Flexible

Part	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Recovered Wall Thickness	Recovered Wall Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Material	Inner Diameter - Recovered	Inner Diameter - Recovered	Features	Type	Color	Length	Length	Shrink Temperature	Shelf Life	Length [x]	Length [x]	Length	Length
Qualtek Q5-3X-1 1/2-01-SS25M	1.575 "	40.01 mm	0.094 "	2.4 mm	-55 °C	125 °C	1	3	-50 °F -10 °C	40 °C	Polyolefin (PO)	13 mm	0.512 in	Adhesive Lined Flame Retardant	Tubing Flexible	Black	25 m	82 ft	80 °C	60 Months
Qualtek Q5-3X-1 1/2-01-QB48IN-5	1.575 "	40.01 mm	0.094 "	2.4 mm	-55 °C	125 °C	1	3	-50 °F -10 °C	40 °C	Polyolefin (PO)	13 mm	0.512 in	Adhesive Lined Flame Retardant	Tubing Flexible	Black			80 °C	60 Months	1.22 m	4 ft
Qualtek Q5-3X-1 1/2-01-QB6IN-5	1.575 "	40.01 mm	0.094 "	2.4 mm	-55 °C	125 °C	1	3	-50 °F -10 °C	40 °C	Polyolefin (PO)	13 mm	0.512 in	Adhesive Lined Flame Retardant	Tubing Flexible	Black	152.4 mm		80 °C	60 Months			6 "	0.5 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Shrink Tubing, Flexible 1.575" (40.01mm) 3 to 1 Black 4.00' (1.22m)
