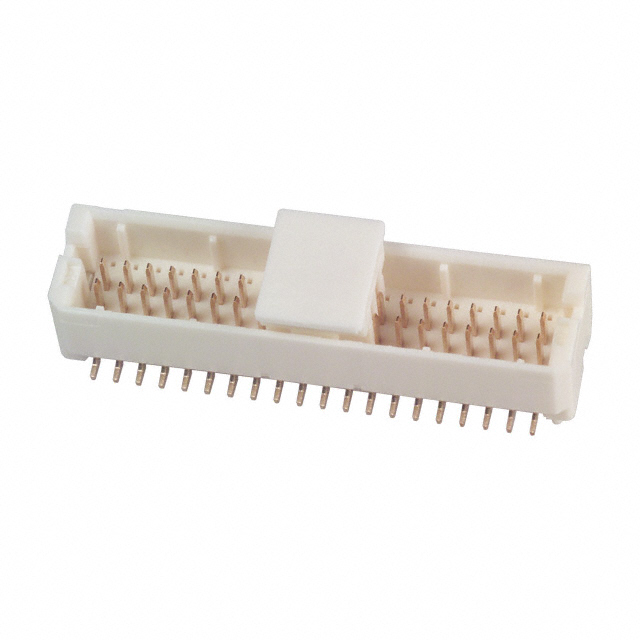

DF20G-40DP-1V(55)

Obsolete

Hirose Electric USA, Inc.

CONN HEADER SMD 40POS 1MM

Deep-Dive with AI

Search across all available documentation for this part.

DF20G-40DP-1V(55)

Obsolete

Hirose Electric USA, Inc.

CONN HEADER SMD 40POS 1MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF20G-40DP-1V(55)

Connector Type	Header
Contact Finish - Mating	Gold
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Pick and Place, Board Guide
Insulation Color	Natural
Insulation Height	4.6 mm
Insulation Height	0.181 in
Insulation Material	Polyamide (PA), Nylon
Mated Stacking Heights	5.8 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-35 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Row Spacing - Mating	0.039 "
Row Spacing - Mating	1 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	100 V

DF20G Series

Part	Insulation Height	Insulation Height	Shrouding	Contact Material	Row Spacing - Mating	Row Spacing - Mating	Number of Positions	Pitch - Mating	Pitch - Mating	Fastening Type	Number of Positions Loaded	Style	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Number of Rows	Material Flammability Rating	Contact Shape	Connector Type	Contact Finish - Mating	Insulation Material	Voltage Rating	Features	Contact Type	Mated Stacking Heights	Mounting Type	Insulation Color
Hirose Electric USA, Inc. DF20G-10DP-1V(59)	4.6 mm	0.181 in	Shrouded - 4 Wall	Phosphor Bronze	0.039 "	1 mm	10	0.039 in	1 mm	Push-Pull	All	Board to Cable/Wire	-35 °C	85 °C	Solder	2	UL94 V-0	Square	Header	Gold	Nylon Polyamide (PA)	100 V	Board Guide Pick and Place	Male Pin	5.8 mm	Surface Mount	Natural
Hirose Electric USA, Inc. DF20G-50DP-1V(59)	4.6 mm	0.181 in	Shrouded - 4 Wall	Phosphor Bronze	0.039 "	1 mm	50	0.039 in	1 mm	Push-Pull	All	Board to Cable/Wire	-35 °C	85 °C	Solder	2	UL94 V-0	Square	Header	Gold	Nylon Polyamide (PA)	100 V	Board Guide Pick and Place	Male Pin	5.8 mm	Surface Mount	Natural
Hirose Electric USA, Inc. DF20G-30DP-1V(56)	4.6 mm	0.181 in	Shrouded - 4 Wall	Phosphor Bronze	0.039 "	1 mm	30	0.039 in	1 mm	Push-Pull	All	Board to Cable/Wire	-35 °C	85 °C	Solder	2	UL94 V-0	Square	Header	Gold	Nylon Polyamide (PA)	100 V	Board Guide Pick and Place Solder Retention	Male Pin	5.8 mm	Surface Mount	Natural
Hirose Electric USA, Inc. DF20G-30DP-1V(90)
Hirose Electric USA, Inc. DF20G-40DP-1V(59)	4.6 mm	0.181 in	Shrouded - 4 Wall	Phosphor Bronze	0.039 "	1 mm	40	0.039 in	1 mm	Push-Pull	All	Board to Cable/Wire	-35 °C	85 °C	Solder	2	UL94 V-0	Square	Header	Gold	Nylon Polyamide (PA)	100 V	Board Guide Pick and Place	Male Pin	5.8 mm	Surface Mount	Natural
Hirose Electric USA, Inc. DF20G-40DP-1V(55)	4.6 mm	0.181 in	Shrouded - 4 Wall	Phosphor Bronze	0.039 "	1 mm	40	0.039 in	1 mm	Push-Pull	All	Board to Cable/Wire	-35 °C	85 °C	Solder	2	UL94 V-0	Square	Header	Gold	Nylon Polyamide (PA)	100 V	Board Guide Pick and Place	Male Pin	5.8 mm	Surface Mount	Natural
Hirose Electric USA, Inc. DF20G-20DP-1V(56)	4.6 mm	0.181 in	Shrouded - 4 Wall	Phosphor Bronze	0.039 "	1 mm	20	0.039 in	1 mm	Push-Pull	All	Board to Cable/Wire	-35 °C	85 °C	Solder	2	UL94 V-0	Square	Header	Gold	Nylon Polyamide (PA)	100 V	Board Guide Pick and Place Solder Retention	Male Pin	5.8 mm	Surface Mount	Natural
Hirose Electric USA, Inc. DF20G-20DP-1V(77)
Hirose Electric USA, Inc. DF20G-10DP-1V(56)	4.6 mm	0.181 in	Shrouded - 4 Wall	Phosphor Bronze	0.039 "	1 mm	10	0.039 in	1 mm	Push-Pull	All	Board to Cable/Wire	-35 °C	85 °C	Solder	2	UL94 V-0	Square	Header	Gold	Nylon Polyamide (PA)	100 V	Board Guide Pick and Place Solder Retention	Male Pin	5.8 mm	Surface Mount	Natural

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

DF20G Series

Connector Header Surface Mount 40 position 0.039" (1.00mm)
