UF2DF_R1_00001

Active

Panjit International Inc.

DIODE STANDARD 200V 2A SMBF

Search across all available documentation for this part.

Active

Panjit International Inc.

DIODE STANDARD 200V 2A SMBF

Technical Specifications

Parameters and characteristics for this part

Specification	UF2DF_R1_00001

Capacitance @ Vr, F	37 pF
Current - Average Rectified (Io)	2 A
Current - Reverse Leakage @ Vr	1 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C

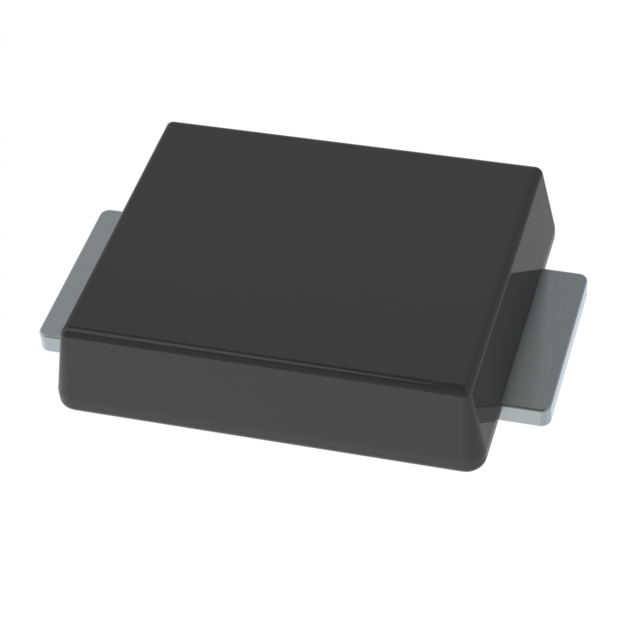

Package / Case	SMB Flat Leads, DO-221AA
Reverse Recovery Time (trr)	50 ns
Speed	200 mA, 500 ns
Supplier Device Package	SMBF
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	200 V
Voltage - Forward (Vf) (Max) @ If	1 V

Part	Capacitance @ Vr, F	Current - Reverse Leakage @ Vr	Package / Case	Mounting Type	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Voltage - DC Reverse (Vr) (Max) [Max]	Reverse Recovery Time (trr)	Supplier Device Package	Technology	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Speed	Supplier Device Package
Panjit International Inc. UF2DF_R1_00001	37 pF	1 µA	DO-221AA SMB Flat Leads	Surface Mount	2 A	1 V	200 V	50 ns	SMBF	Standard	150 °C	-55 °C	200 mA 500 ns
Panjit International Inc. UF2D_R1_00001	28 pF	1 µA	DO-214AA SMB	Surface Mount	2 A	1 V	200 V	50 ns	DO-214AA	Standard	150 °C	-55 °C	200 mA 500 ns	SMB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.61
	Digi-Reel®	1	$ 0.61
	Tape & Reel (TR)	120000	$ 0.10

General part information

Diode 200 V 2A Surface Mount SMBF

Technical documentation and resources

No documents available
