09140043041

Active

HARTING Technology Group

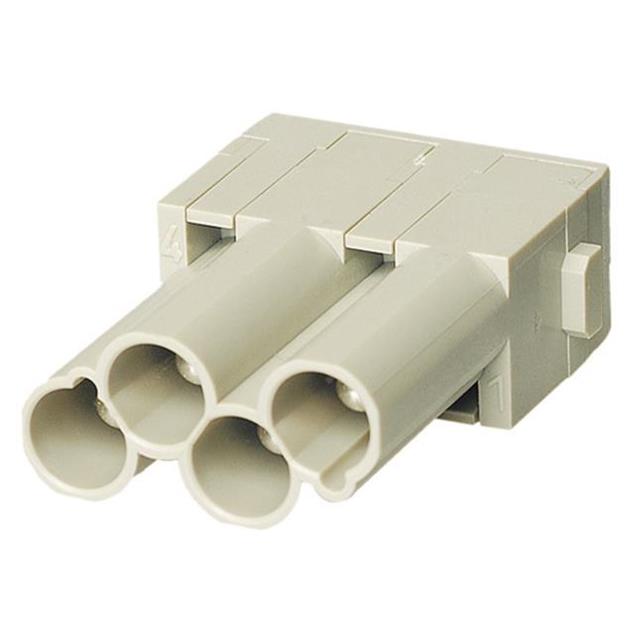

MODULE MALE 4POS CRIMP

Search across all available documentation for this part.

Active

HARTING Technology Group

MODULE MALE 4POS CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	09140043041

Color	Gray
Connector Type	Module without Contacts
Contact Type	Han® C
Current Rating (Amps)	40 A
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Termination Style	Crimp
Voltage Rating	600 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Gender	Number of Positions	Contact Type	Housing Material	Connector Type	Current Rating (Amps)	Termination Style	Material Flammability Rating	Color
HARTING Technology Group 09140043141	125 °C	-40 °C	600 V	Female	4	Han® C	Polycarbonate (PC)	Module without Contacts	40 A	Crimp	UL94 V-0	Gray
HARTING Technology Group 09140043041	125 °C	-40 °C	600 V	Male	4	Han® C	Polycarbonate (PC)	Module without Contacts	40 A	Crimp	UL94 V-0	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Module without Contacts Gray 4 Position Crimp
