C8051F300-GMR

Silicon Labs

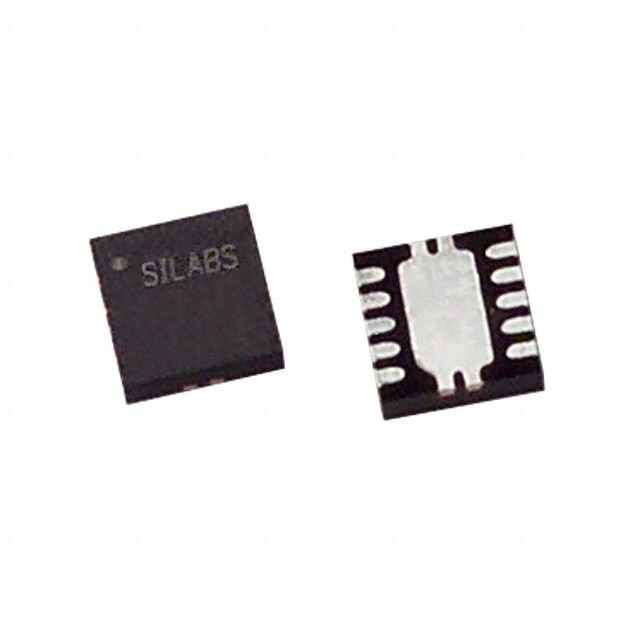

IC MCU 8BIT 8KB FLASH 11QFN

Search across all available documentation for this part.

Silicon Labs

IC MCU 8BIT 8KB FLASH 11QFN

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Oscillator Type	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Mounting Type	Number of I/O	Connectivity	Core Size	Peripherals	Operating Temperature [Max]	Operating Temperature [Min]	Core Processor	Program Memory Type	Data Converters	Speed	RAM Size	Package / Case [x]	Package / Case [y]	Supplier Device Package
Silicon Labs C8051F300-GDI	Die	Internal	3.6 V	2.7 V	Surface Mount	8	SMBus (2-Wire/I2C) UART/USART	8-Bit	POR PWM Temp Sensor WDT	85 °C	-40 °C	8051	FLASH	A/D 8x8b	25 MHz	256 x 8
Silicon Labs C8051F300-GS	14-SOIC	Internal	3.6 V	2.7 V	Surface Mount	8	SMBus (2-Wire/I2C) UART/USART	8-Bit	POR PWM Temp Sensor WDT	85 °C	-40 °C	8051	FLASH	A/D 8x8b	25 MHz	256 x 8	0.154 in	3.9 mm
Silicon Labs C8051F300	10-VFDFN Exposed Pad	Internal	3.6 V	2.7 V	Surface Mount	8	SMBus (2-Wire/I2C) UART/USART	8-Bit	POR PWM Temp Sensor WDT	85 °C	-40 °C	8051	FLASH	A/D 8x8b	25 MHz	256 x 8			11-QFN (3x3)
Silicon Labs C8051F300-GMR	10-VFDFN Exposed Pad	Internal	3.6 V	2.7 V	Surface Mount	8	SMBus (2-Wire/I2C) UART/USART	8-Bit	POR PWM Temp Sensor WDT	85 °C	-40 °C	8051	FLASH	A/D 8x8b	25 MHz	256 x 8			11-QFN (3x3)
Silicon Labs C8051F300-GSR	14-SOIC	Internal	3.6 V	2.7 V	Surface Mount	8	SMBus (2-Wire/I2C) UART/USART	8-Bit	POR PWM Temp Sensor WDT	85 °C	-40 °C	8051	FLASH	A/D 8x8b	25 MHz	256 x 8	0.154 in	3.9 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8051 C8051F30x Microcontroller IC 8-Bit 25MHz 8KB (8K x 8) FLASH 11-QFN (3x3)
