65_SMA-50-0-1/111_NE

Obsolete

Huber+Suhner, Inc.

Search across all available documentation for this part.

Obsolete

Huber+Suhner, Inc.

65_SMA-50-0-1/111_NE

Technical Specifications

Parameters and characteristics for this part

Part	Dielectric Material	Connector Style	Impedance	Contact Finish	Frequency - Max [Max]	Mounting Type	Connector Type	Contact Material	Body Finish	Body Material
Huber+Suhner, Inc. 65_SMA-50-0-36/111_NE	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	SMA	50 Ohms	Gold	18 GHz	Cap Free Hanging	Female Socket Jack	Beryllium Copper	Gold	Beryllium Copper
Huber+Suhner, Inc. 65_SMA-50-0-35/111_YE	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	SMA	50 Ohms	Gold	6000 MHz	Cap Free Hanging	Female Socket Jack	Beryllium Copper	Gold	Brass
Huber+Suhner, Inc. 65_SMA-50-0-20/111_YE	Polytetrafluoroethylene (PTFE)	SMA	50 Ohms	Gold	6000 MHz	Cap Free Hanging	Male Pin Plug	Brass	Gold	Brass
Huber+Suhner, Inc. 65_SMA-50-0-1/111_NE		SMA	50 Ohms	Gold	18 GHz	Cap Free Hanging	Male Pin Plug	Beryllium Copper	Gold	Beryllium Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

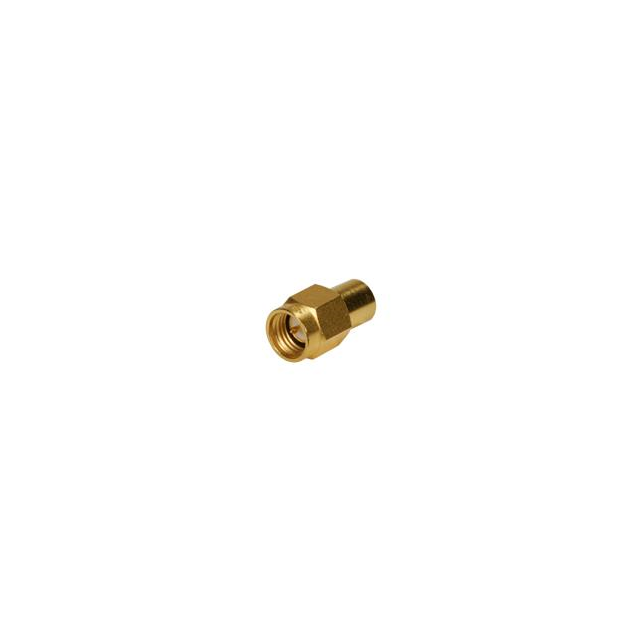

Terminator Coax Connector Plug, Male Pin SMA 50 Ohms

Technical documentation and resources
