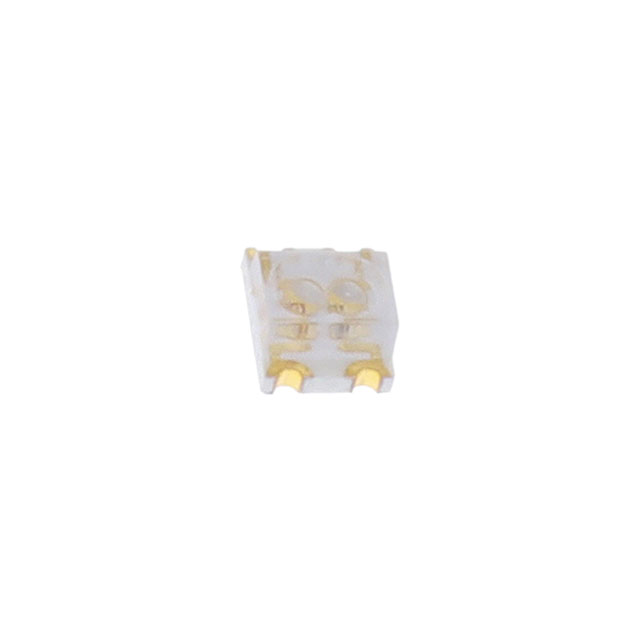

SML-LXL1210SRGC-TR

Obsolete

Lumex Opto/Components Inc.

LED GREEN/RED CLEAR 1210 SMD

Deep-Dive with AI

Search across all available documentation for this part.

SML-LXL1210SRGC-TR

Obsolete

Lumex Opto/Components Inc.

LED GREEN/RED CLEAR 1210 SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SML-LXL1210SRGC-TR

Color	Red, Green
Configuration	Independent
Current - Test	20 mA, 20 mA
Height (Max) [Max]	1.5 mm
Lens Color	Colorless
Lens Size [x]	1.8 mm
Lens Size [y]	2.5 mm
Lens Style	Rectangle with Flat Top
Lens Transparency	Clear
Millicandela Rating	35 mcd, 20 mcd
Mounting Type	Surface Mount
Package / Case	4-SMD, No Lead
Size / Dimension [x]	3 mm
Size / Dimension [y]	2.5 mm
Supplier Device Package	1210
Viewing Angle	60 °
Voltage - Forward (Vf) (Typ)	1.7 V, 2.1 V
Wavelength - Peak	660 nm, 570 nm

SML-LXL1210 Series

Part	Size / Dimension [x]	Size / Dimension [y]	Viewing Angle	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Millicandela Rating	Wavelength - Peak	Configuration	Color	Lens Size [x]	Lens Size [y]	Lens Transparency	Supplier Device Package	Height (Max) [Max]	Lens Style	Current - Test	Mounting Type	Package / Case	Lens Color	Current - Test	Voltage - Forward (Vf) (Typ)	Millicandela Rating [custom]	Millicandela Rating [custom]	Viewing Angle [custom]	Millicandela Rating	Millicandela Rating [custom]
Lumex Opto/Components Inc. SML-LXL1210SRYC-TR	3 mm	2.5 mm	60 °	2.1 V	1.7 V	10mcd Yellow 50mcd Red	585 nm 660 nm	Independent	Red Yellow	1.8 mm	2.5 mm	Clear	1210	1.5 mm	Rectangle with Flat Top	20mA Red 20mA Yellow	Surface Mount	4-SMD No Lead	Colorless
Lumex Opto/Components Inc. SML-LXL1210IGC-TR	3 mm	2.5 mm	60 °			10mcd Green 10mcd Red	565 nm 635 nm	Independent	Green Red	1.8 mm	2.5 mm	Clear	1210	1.5 mm	Rectangle with Flat Top		Surface Mount	4-SMD No Lead	Colorless	20 mA 20 mA	2 V 2.2 V
Lumex Opto/Components Inc. SML-LXL1210SRSYCTR	3 mm	2.5 mm	60 °	2.1 V	1.7 V		590 nm 660 nm	Independent	Red Yellow	1.8 mm	2.5 mm	Clear	1210	1.5 mm	Rectangle with Flat Top	20mA Red 20mA Yellow	Surface Mount	4-SMD No Lead	Colorless			90 mcd	50 mcd
Lumex Opto/Components Inc. SML-LXL1210SYSUGC	3 mm	2.5 mm					574 nm 590 nm	Independent	Green Yellow			Clear	1210	1.5 mm	Rectangle with Irregular Top		Surface Mount	4-SMD No Lead	Colorless	20 mA 20 mA	2 V 2 V			90 °
Lumex Opto/Components Inc. SML-LXL1210SRGC-TR	3 mm	2.5 mm	60 °				570 nm 660 nm	Independent	Green Red	1.8 mm	2.5 mm	Clear	1210	1.5 mm	Rectangle with Flat Top		Surface Mount	4-SMD No Lead	Colorless	20 mA 20 mA	1.7 V 2.1 V				20 mcd 35 mcd
Lumex Opto/Components Inc. SML-LXL1210GYC-TR	3 mm	2.5 mm	60 °				565 nm 585 nm	Independent	Green Yellow	1.8 mm	2.5 mm	Clear	1210	1.5 mm	Rectangle with Flat Top		Surface Mount	4-SMD No Lead	Colorless	20 mA 20 mA	2 V 2 V	6 mcd				10 mcd
Lumex Opto/Components Inc. SML-LXL1210YGC-TR	3 mm	2.5 mm	60 °				565 nm 585 nm	Independent	Green Yellow	1.8 mm	2.5 mm	Clear	1210	1.5 mm	Rectangle with Flat Top		Surface Mount	4-SMD No Lead	Colorless	20 mA 20 mA	2.1 V 2.2 V	6 mcd				10 mcd

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SML-LXL1210 Series

Green, Red LED Indication - Discrete 2.1V Green, 1.7V Red 4-SMD, No Lead

Documents

Technical documentation and resources

No documents available
