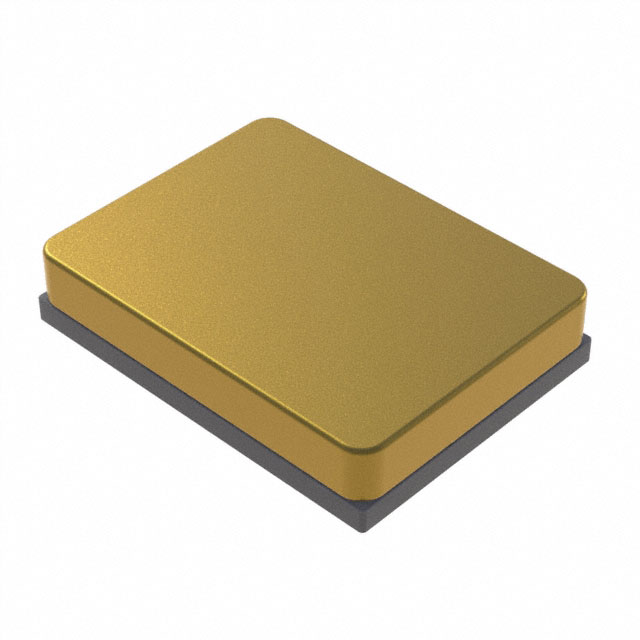

XRCMD48M000FXQ58R0

Obsolete

Murata Power Solutions Inc.

CRYSTAL 48.0000MHZ 7PF SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCrystal Units/Oscillators Catalog Datasheet

XRCMD48M000FXQ58R0

Obsolete

Murata Power Solutions Inc.

CRYSTAL 48.0000MHZ 7PF SMD

Deep-Dive with AI

DocumentsCrystal Units/Oscillators Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XRCMD48M000FXQ58R0

ESR (Equivalent Series Resistance)	40 Ohms
Frequency	48 MHz
Frequency Tolerance	20 ppm
Height - Seated (Max) [Max]	0.33 mm
Height - Seated (Max) [Max] [z]	0.013 "
Load Capacitance	7 pF
Mounting Type	Surface Mount
Operating Mode	Fundamental
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Package / Case	4-SMD, No Lead
Size / Dimension [x]	1.6 mm
Size / Dimension [x]	0.063 in
Size / Dimension [y]	0.047 in
Size / Dimension [y]	1.2 mm
Type	MHz Crystal

XRCMD Series

Part	Operating Mode	Frequency	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Type	Frequency Tolerance	Mounting Type	ESR (Equivalent Series Resistance)	Load Capacitance	Frequency Stability
Murata Power Solutions Inc. XRCMD32M000FZQ52R0	Fundamental	32 MHz	0.047 in	1.2 mm	1.6 mm	0.063 in	0.013 "	0.33 mm	4-SMD No Lead	85 °C	-40 °C	MHz Crystal	30 ppm	Surface Mount	60 Ohms	6 pF
Murata Power Solutions Inc. XRCMD32M000FXQ52R0	Fundamental	32 MHz	0.047 in	1.2 mm	1.6 mm	0.063 in	0.013 "	0.33 mm	4-SMD No Lead	85 °C	-30 ░C	MHz Crystal	25 ppm	Surface Mount	80 Ohm	6 pF	25 ppm
Murata Power Solutions Inc. XRCMD37M400F1Q01R0	Fundamental	37.4 MHz	0.047 in	1.2 mm	1.6 mm	0.063 in	0.013 "	0.33 mm	4-SMD No Lead	70 °C	-20 C	MHz Crystal	10 ppm	Surface Mount	60 Ohms	8 pF	10 ppm
Murata Power Solutions Inc. XRCMD32M000FXP50R0	Fundamental	32 MHz	0.047 in	1.2 mm	1.6 mm	0.063 in	0.013 "	0.33 mm	4-SMD No Lead	85 °C	-30 ░C	MHz Crystal	30 ppm	Surface Mount	100 Ohms	6 pF
Murata Power Solutions Inc. XRCMD48M000FXQ58R0	Fundamental	48 MHz	0.047 in	1.2 mm	1.6 mm	0.063 in	0.013 "	0.33 mm	4-SMD No Lead	85 °C	-30 ░C	MHz Crystal	20 ppm	Surface Mount	40 Ohms	7 pF
Murata Power Solutions Inc. XRCMD32M000FXP53R0	Fundamental	32 MHz	0.047 in	1.2 mm	1.6 mm	0.063 in	0.013 "	0.33 mm	4-SMD No Lead	85 °C	-40 °C	MHz Crystal	30 ppm	Surface Mount	80 Ohm	6 pF	20 ppm
Murata Power Solutions Inc. XRCMD32M000F1P00R0	Fundamental	32 MHz	0.047 in	1.2 mm	1.6 mm	0.063 in	0.013 "	0.33 mm	4-SMD No Lead	85 °C	-30 ░C	MHz Crystal	10 ppm	Surface Mount	80 Ohm	6 pF	20 ppm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

XRCMD Series

48 MHz ±20ppm Crystal 7pF 40 Ohms 4-SMD, No Lead

Documents

Technical documentation and resources

Crystal Units/Oscillators Catalog

Datasheet
