GLF71320
ActiveGLF Integrated Power
4A NANO POWER LOAD SWITCH
Deep-Dive with AI
Search across all available documentation for this part.
GLF71320
ActiveGLF Integrated Power
4A NANO POWER LOAD SWITCH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GLF71320 |
|---|---|
| Current - Output (Max) [Max] | 4 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | High Side |
| Output Type | P-Channel |

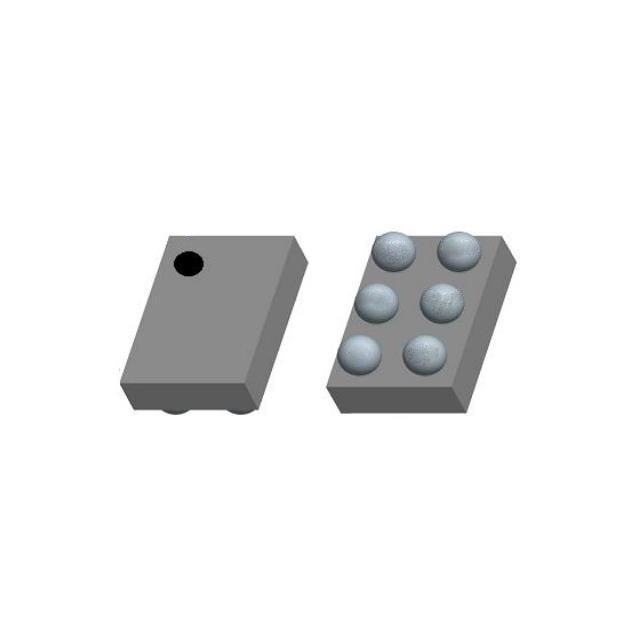

| Package / Case | 6-UFBGA, WLCSP |
| Rds On (Typ) | 15 mOhm |
| Supplier Device Package | 6-WLCSP |
| Supplier Device Package [x] | 1.47 |
| Supplier Device Package [y] | 0.97 |
| Voltage - Supply (Vcc/Vdd) [Max] | 5.5 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 1.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 10 | $ 0.68 | |
| 20 | $ 0.60 | |||
| 30 | $ 0.56 | |||
| 100 | $ 0.42 | |||
| 250 | $ 0.36 | |||
| 500 | $ 0.34 | |||
| 1000 | $ 0.26 | |||
| 3000 | $ 0.24 | |||
| 6000 | $ 0.23 | |||
Description
General part information
GLF71320 Series
Power Switch/Driver P-Channel 4A 6-WLCSP (1.47x0.97)
Documents
Technical documentation and resources
No documents available
