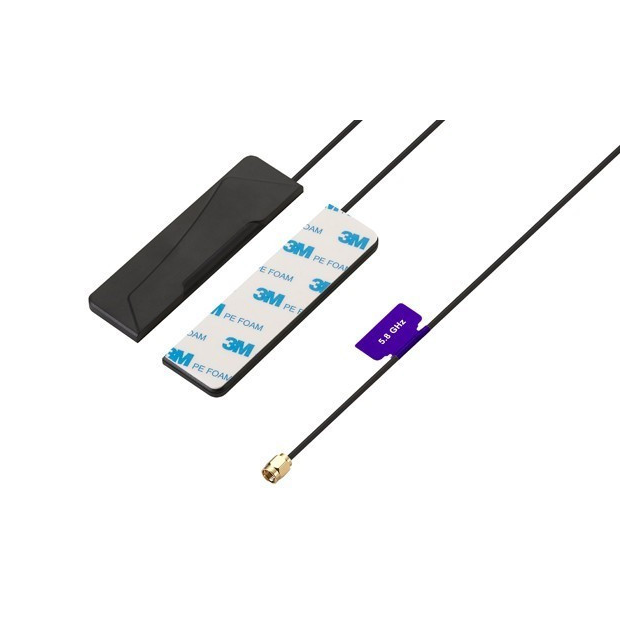

WSA.5800.A.101151
ObsoleteTAOGLAS
ANTENNA I-BAR -13.19DBI GAIN 5850MHZ AUTOMOTIVE AEC-Q200 BAG
Deep-Dive with AI
Search across all available documentation for this part.
WSA.5800.A.101151
ObsoleteTAOGLAS
ANTENNA I-BAR -13.19DBI GAIN 5850MHZ AUTOMOTIVE AEC-Q200 BAG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | WSA.5800.A.101151 |
|---|---|
| Antenna Type | Flat Bar |
| Applications | WLAN, Wi-Fi |
| Frequency (Center/Band) | 5.8 GHz |
| Frequency Group | SHF |
| Frequency Range [Max] | 5.85 GHz |
| Frequency Range [Min] | 4.9 GHz |
| Gain | 4.1 dBi |
| Height (Max) | 7.7 mm |
| Height (Max) | 0.303 in |
| Ingress Protection | IP65 |
| Mounting Type | Adhesive |
| Number of Bands | 1 |
| Power - Max [Max] | 2 W |
| Return Loss | -10 dB |
| RF Family/Standard | WiFi |
| Termination | RP-SMA Male |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
WSA.5800 Series
RF ANTENNA Wi-Fi, WLAN Flat Bar RP-SMA Male Adhesive
Documents
Technical documentation and resources
No documents available
