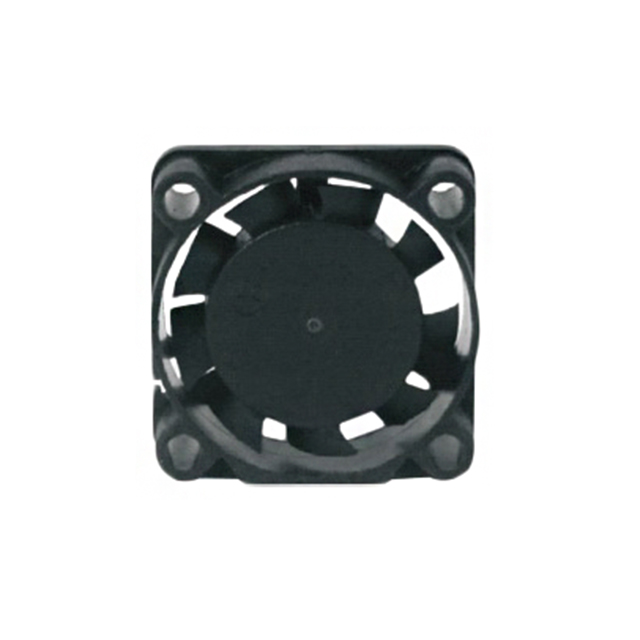

MS2507E12B2-RSR

Active

Mechatronics Bearing Group

FAN AXIAL 25X7.4MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet AC/DC Fans & Blowers Catalog +1

MS2507E12B2-RSR

Active

Mechatronics Bearing Group

FAN AXIAL 25X7.4MM 12VDC WIRE

Deep-Dive with AI

DocumentsDatasheet AC/DC Fans & Blowers Catalog +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS2507E12B2-RSR

Air Flow	2.8 CFM
Air Flow	0.078 m³/min
Approval Agency	CE, cUL, TUV, UL
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Locked Rotor Sensor
Material - Blade	Plastic
Material - Frame	Plastic
Noise	31 dB(A)
RPM	17000 RPM
Size / Dimension [x]	25 mm
Size / Dimension [z]	25 mm
Static Pressure	44.8 Pa
Static Pressure	0.18 in H2O
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Weight	0.011 lb
Weight	4.99 g
Width [y]	7.4 mm

MS2507 Series

Part	Size / Dimension [x]	Size / Dimension [z]	Fan Type	Material - Frame	Weight	Weight	Material - Blade	Air Flow	Air Flow	Voltage - Rated	Width [y]	RPM	Current Rating (Amps)	Approval Agency	Noise	Bearing Type	Static Pressure	Static Pressure	Termination	Features
Mechatronics Bearing Group MS2507L05D-RSR	25 mm	25 mm	Tubeaxial	Plastic	0.011 lb	4.99 g	Plastic	0.034 m³/min	1.2 CFM	5 V	7.4 mm	7000 RPM	110 mA	CE cUL TUV UL	20 dB	Sleeve	22.4 Pa	0.09 in H2O
Mechatronics Bearing Group MS2507L05D1-RSR	25 mm	25 mm	Tubeaxial	Plastic	0.011 lb	4.99 g	Plastic	0.034 m³/min	1.2 CFM	5 V	7.4 mm	7000 RPM	110 mA	CE cUL TUV UL	20 dB	Sleeve	22.4 Pa	0.09 in H2O	3 Wire Leads	Speed Sensor (Tach)
Mechatronics Bearing Group MS2507H05D-RSR	25 mm	25 mm	Tubeaxial	Plastic	0.011 lb	4.99 g	Plastic	0.053 mł/min	1.9 CFM	5 V	7.4 mm	14000 RPM	0.23 A	CE cUL TUV UL	28 dB	Sleeve	37.4 Pa	0.15 in H2O
Mechatronics Bearing Group MS2507E12D1-RSR	25 mm	25 mm	Tubeaxial	Plastic	0.011 lb	4.99 g	Plastic	0.078 m³/min	2.8 CFM	12 VDC	7.4 mm	17000 RPM		CE cUL TUV UL	31 dB(A)	Sleeve	44.8 Pa	0.18 in H2O	3 Wire Leads	Speed Sensor (Tach)
Mechatronics Bearing Group MS2507M05B2-RSR	25 mm	25 mm	Tubeaxial	Plastic	0.011 lb	4.99 g	Plastic			5 V	7.4 mm	10000 RPM	0.17 A	CE cUL TUV UL	24 dB	Ball	29.9 Pa	0.12 in H2O	3 Wire Leads	Locked Rotor Sensor
Mechatronics Bearing Group MS2507M12B2-RSR	25 mm	25 mm	Tubeaxial	Plastic	0.011 lb	4.99 g	Plastic			12 VDC	7.4 mm	10000 RPM		CE cUL TUV UL	24 dB	Ball	29.9 Pa	0.12 in H2O	3 Wire Leads	Locked Rotor Sensor
Mechatronics Bearing Group MS2507H05B2-RSR	25 mm	25 mm	Tubeaxial	Plastic	0.011 lb	4.99 g	Plastic	0.053 mł/min	1.9 CFM	5 V	7.4 mm	14000 RPM	0.23 A	CE cUL TUV UL	28 dB	Ball			3 Wire Leads	Locked Rotor Sensor
Mechatronics Bearing Group MS2507L12D-RSR	25 mm	25 mm	Tubeaxial	Plastic	0.011 lb	4.99 g	Plastic	0.034 m³/min	1.2 CFM	12 VDC	7.4 mm	7000 RPM	50 mA	CE cUL TUV UL	20 dB	Sleeve	22.4 Pa	0.09 in H2O
Mechatronics Bearing Group MS2507M05D1-RSR	25 mm	25 mm	Tubeaxial	Plastic	0.011 lb	4.99 g	Plastic			5 V	7.4 mm	10000 RPM	0.17 A	CE cUL TUV UL	24 dB	Sleeve	29.9 Pa	0.12 in H2O	3 Wire Leads	Speed Sensor (Tach)
Mechatronics Bearing Group MS2507E12B2-RSR	25 mm	25 mm	Tubeaxial	Plastic	0.011 lb	4.99 g	Plastic	0.078 m³/min	2.8 CFM	12 VDC	7.4 mm	17000 RPM		CE cUL TUV UL	31 dB(A)	Ball	44.8 Pa	0.18 in H2O	3 Wire Leads	Locked Rotor Sensor

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	200	$ 11.37

Description

General part information

MS2507 Series

Fan Tubeaxial 12VDC Square - 25mm L x 25mm H Ball 2.8 CFM (0.078m³/min) 3 Wire Leads
