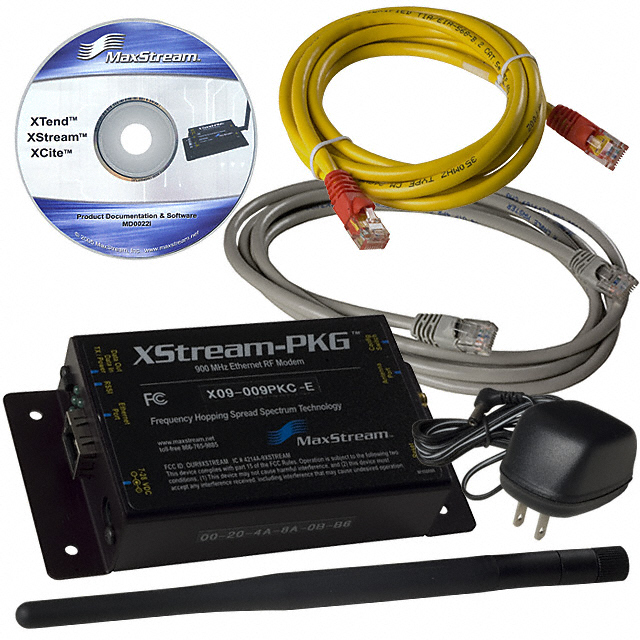

X09-009PKC-EA

Obsolete

Digi

MODEM RF ETHERNET 900MHZ 9600BPS

Search across all available documentation for this part.

Obsolete

Digi

MODEM RF ETHERNET 900MHZ 9600BPS

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Applications	Features	Frequency [Min]	Frequency [Max]	Sensitivity	Function	Data Rate (Max)	Interface	Modulation or Protocol	Power - Output	Power - Output
Digi X09-009PKC-UA	5 V	12 V	ISM	Kit	902 MHz	928 MHz	-110 dBm	Modem Transceiver	9.6 kbps	USB	FHSS FSK	100 mW	20 dBm
Digi X09-009PKC-EA	7 V	28 V	ISM	Kit	902 MHz	928 MHz	-110 dBm	Modem Transceiver	9.6 kbps	RJ-45 Ethernet	FHSS FSK	100 mW	20 dBm
Digi X09-009PKI-R	7 V	18 V	ISM		902 MHz	928 MHz	-110 dBm	Modem Transceiver	9.6 kbps	RS-232 RS-485	FHSS FSK	100 mW	20 dBm
Digi X09-009PKC-R	7 V	18 V	ISM		902 MHz	928 MHz	-110 dBm	Modem Transceiver	9.6 kbps	RS-232 RS-485	FHSS FSK	100 mW	20 dBm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Transceiver, Modem 902MHz ~ 928MHz FHSS, FSK RJ-45 Ethernet 9.6kbps

Technical documentation and resources

No documents available
