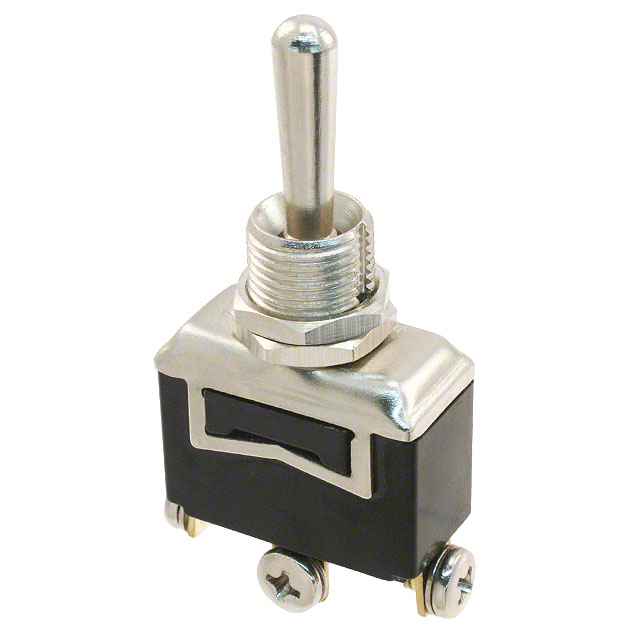

ST165D00

Active

E-Switch

SWITCH TOGGLE SPDT 20A 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TOGGLE SPDT 20A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	ST165D00

Actuator Length [x]	19.5 mm
Actuator Material	Brass, Nickel Plated
Actuator Type	Standard Round
Bushing Thread	M12
Bushing Thread	1 x 1
Circuit	SPDT
Current Rating (Amps)	20 A
Electrical Life	6000 Cycles
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C
Panel Cutout Dimensions [diameter]	12 mm
Switch Function	On-Off-On
Termination Style	Screw Terminal
Voltage Rating - AC	125 V

Part	Actuator Type	Illumination	Bushing Thread	Bushing Thread	Electrical Life	Panel Cutout Dimensions [diameter]	Switch Function	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Length [x]	Circuit	Voltage Rating - AC	Termination Style	Actuator Material
E-Switch ST165D00	Standard Round	Non-Illuminated	M12	1 x 1	6000 Cycles	12 mm	On-Off-On	20 A	0 °C	85 °C	19.5 mm	SPDT	125 V	Screw Terminal	Brass Nickel Plated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPDT Panel Mount
