C091 31F003 100 2

Active

Amphenol Tuchel Industrial

CONN PLUG FMALE 3P SOLDER CUP

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLUG FMALE 3P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	C091 31F003 100 2

Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Current Rating (Amps)	10 A
Features	Strain Relief
Ingress Protection	IP69K, IP65, IP67
Mounting Type	Free Hanging (In-Line), Right Angle
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Die Cast
Shell Size - Insert	M16-3
Shielding	Shielded
Voltage Rating	60 VDC

Part	Connector Type	Color	Orientation	Shell Finish	Current Rating (Amps)	Primary Material	Features	Shell Material	Shell Size - Insert	Mounting Type	Voltage Rating	Contact Finish - Mating	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection
Amphenol Tuchel Industrial C091 31F003 100 2	Female Sockets Plug	Silver	Keyed	Nickel	10 A	Metal	Strain Relief	Die Cast	M16-3	Free Hanging (In-Line) Right Angle	60 VDC	Silver	Shielded	100 °C	-40 °C	IP65 IP67 IP69K

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 17.21

General part information

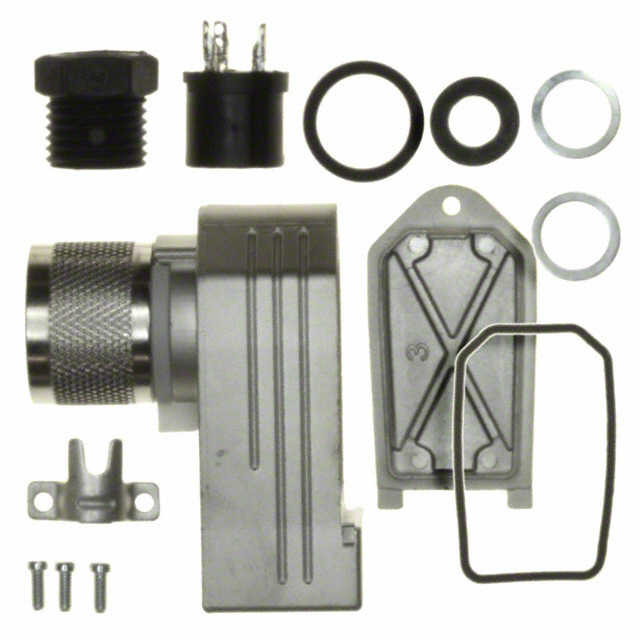

3 Position Circular Connector Plug, Female Sockets Solder Cup
